Rear Door Quarter Glass Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C-pillar trim panel. Refer to "C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :".
  2. Remove the nuts and the rear door quarter glass.

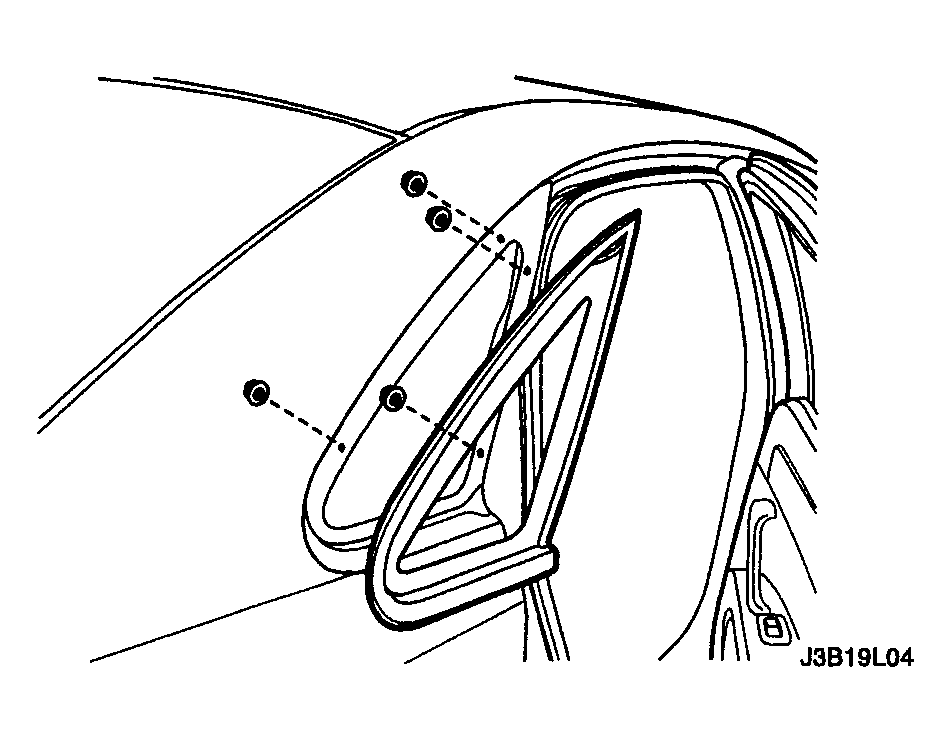

    Fig 1: Removing Rear Door Quarter Glass
    G04104513Courtesy of SUZUKI OF AMERICA CORP.
