Rear Door Quarter Glass Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

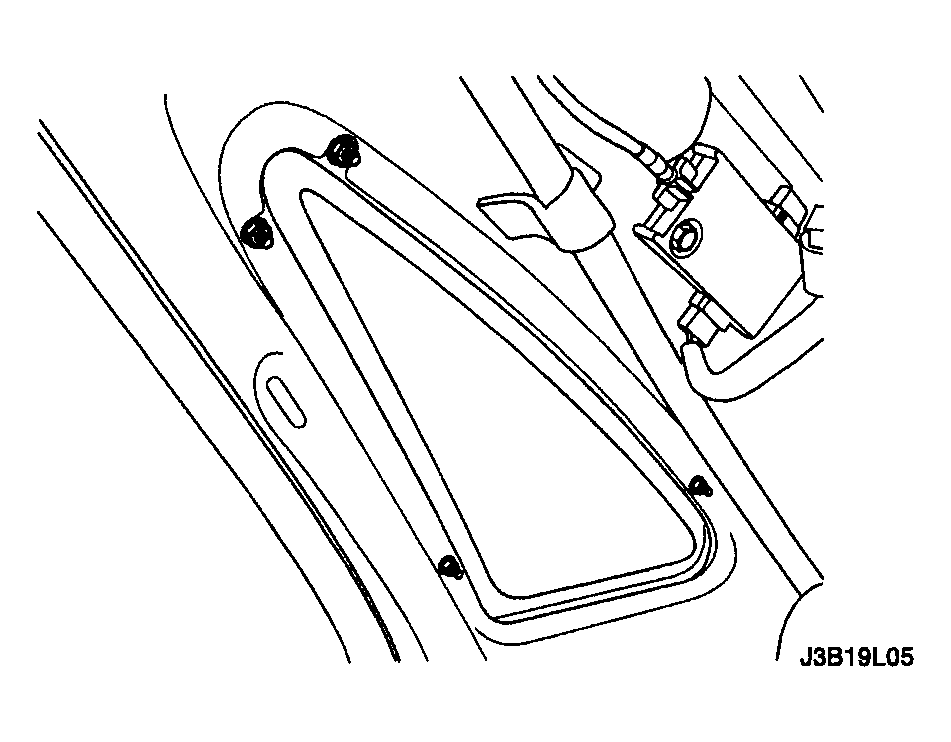

- Install the rear door quarter glass with the nuts.
Tighten
Tighten the rear door quarter glass nuts to 2.5 N.m (22 lb-in).
- Remove the C-pillar trim panel. Refer to "C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION :".
