Tweeter Speakers Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the tweeter speaker by prying the tweeter speaker out of the door trim panel.
  3. Disconnect the electrical connector.

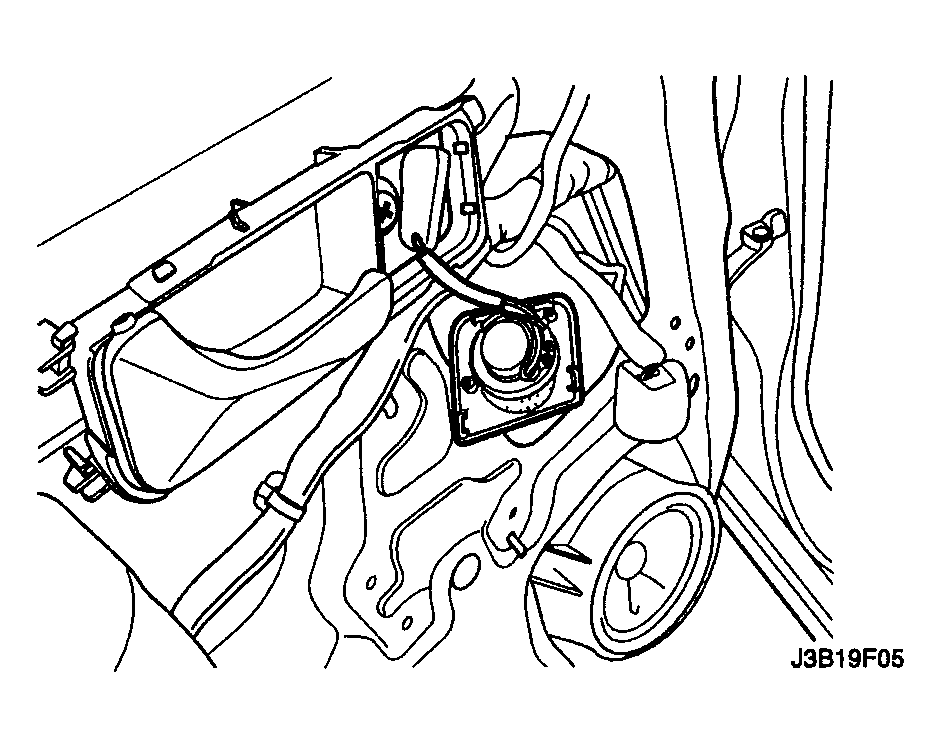

    Fig 1: Removing Tweeter Speakers
    G04104832Courtesy of SUZUKI OF AMERICA CORP.
