Wipers and Washer System Circuit Wiring Diagram

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

For Notchback Model

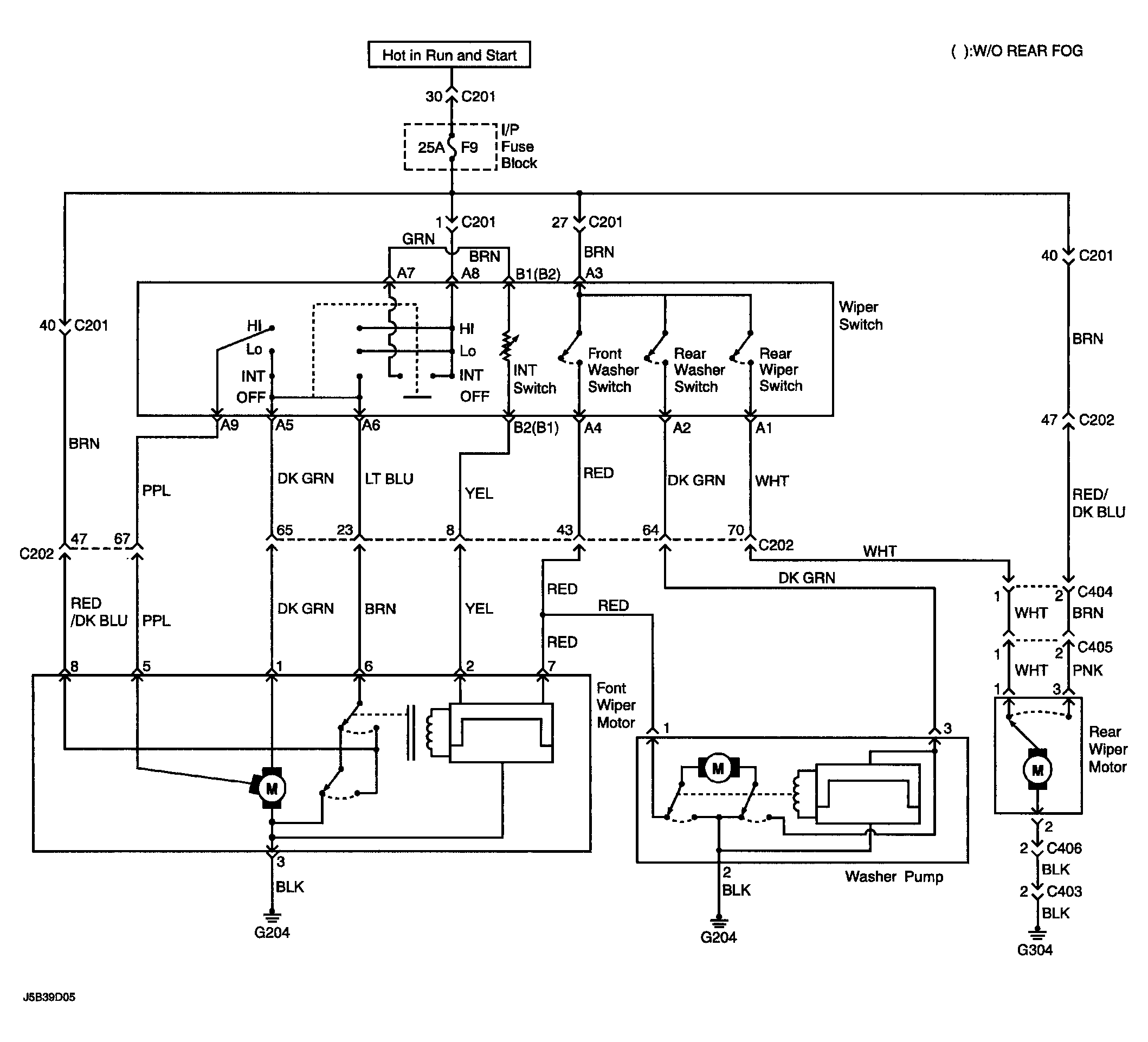

Fig 1: Wipers And Washer System Circuit - Wiring Diagram (For Notchback Model)

Courtesy of SUZUKI OF AMERICA CORP.

For Hatchback Model

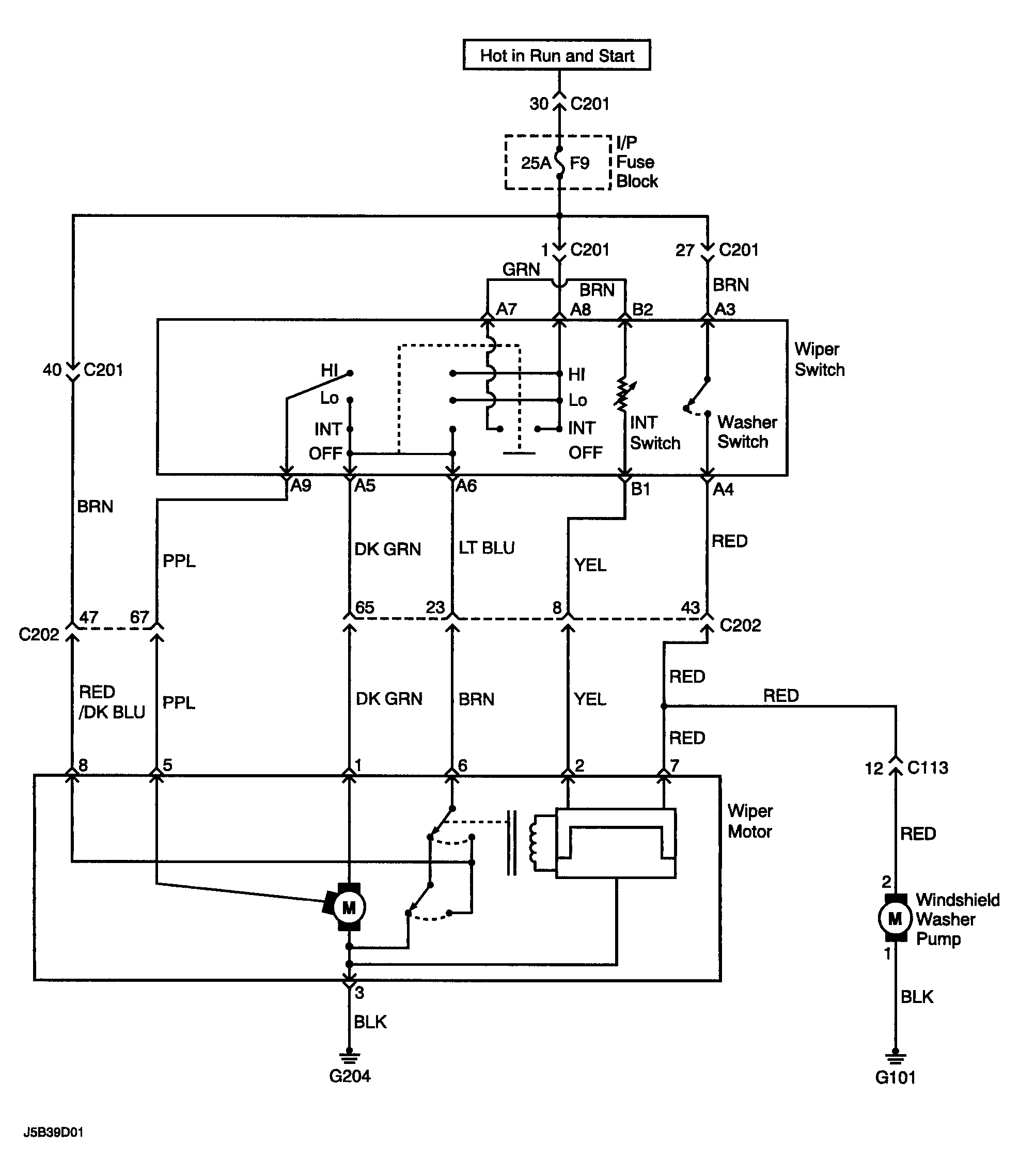

Fig 2: Wipers And Washer System Circuit - Wiring Diagram (For Hatchback Model)

Courtesy of SUZUKI OF AMERICA CORP.

For Station Wagon Model

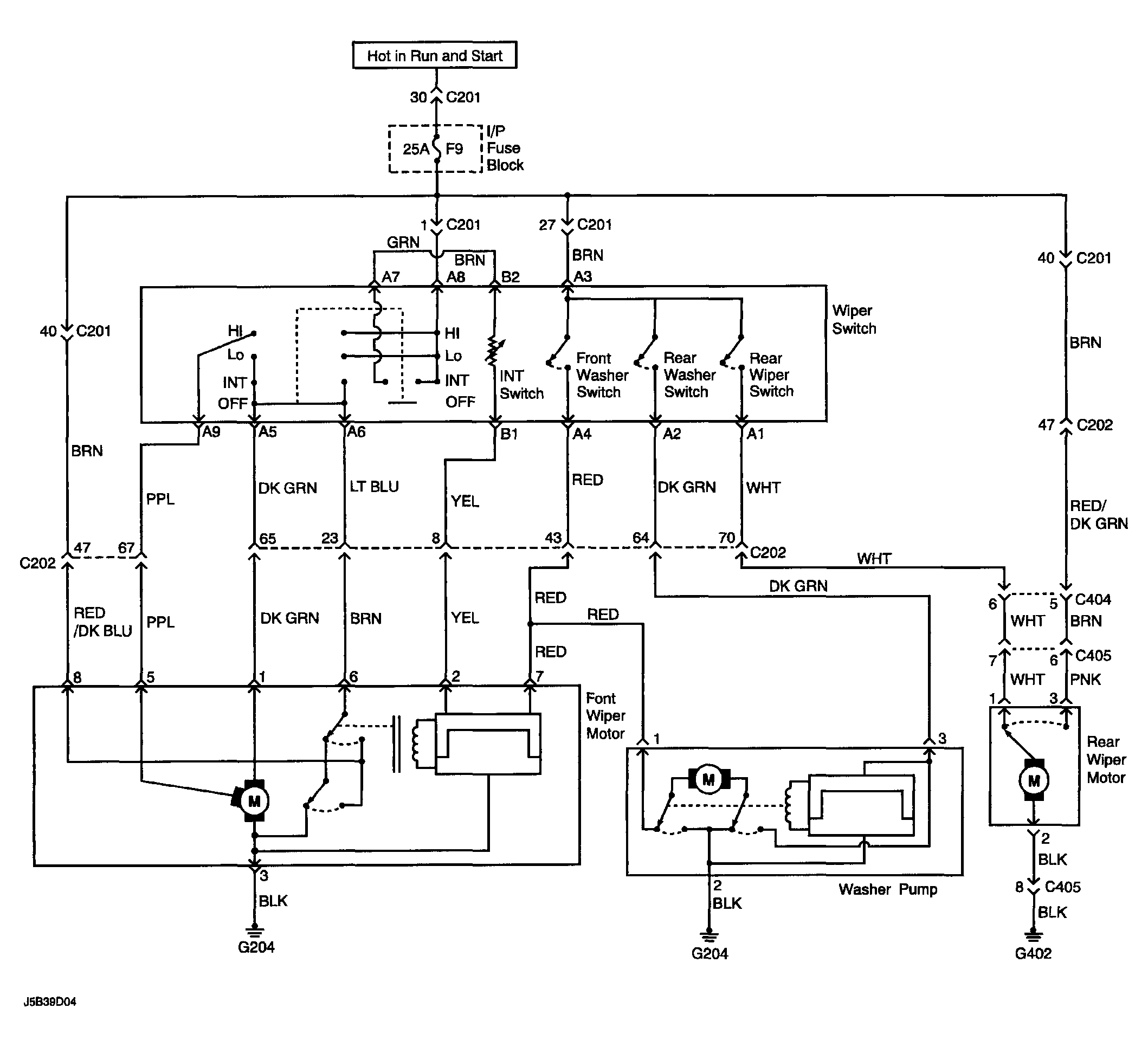

Fig 3: Wipers And Washer System Circuit - Wiring Diagram (For Station Wagon Model)

Courtesy of SUZUKI OF AMERICA CORP.
