Windshield Washer Reservoir Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front left wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Remove the bolts, the screws and the front wheel well splash shield.

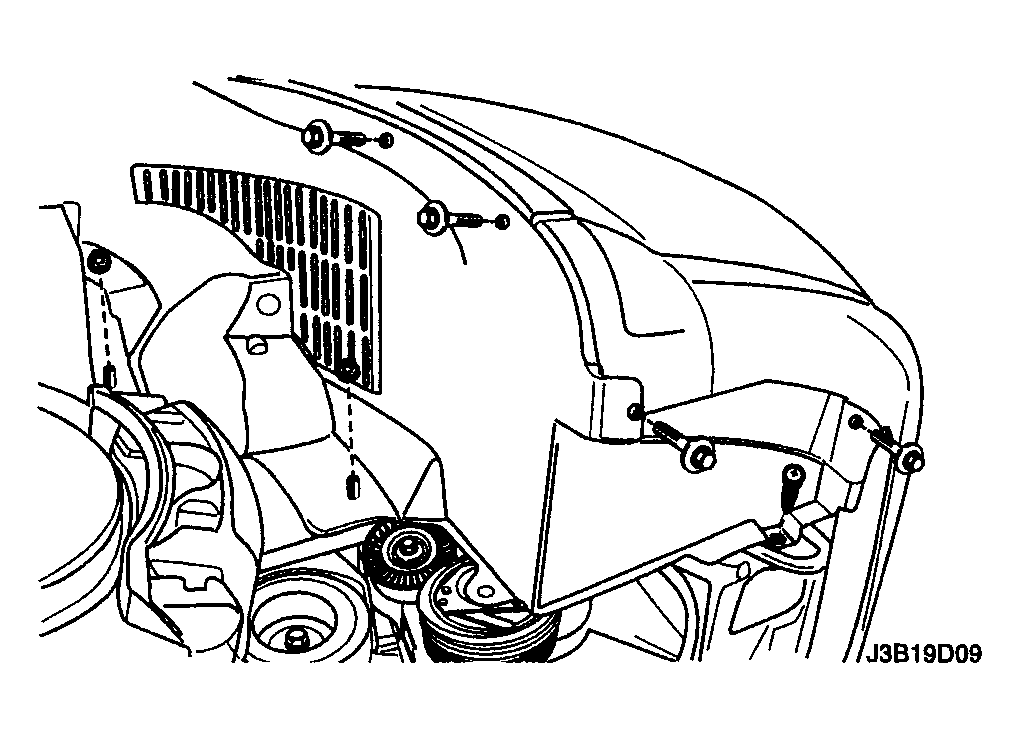

Fig 1: Removing Front Wheel Well Splash Shield
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the washer hose from the washer pump.
Disconnect the reservoir pump electrical connector.
Remove the bolts and the reservoir.

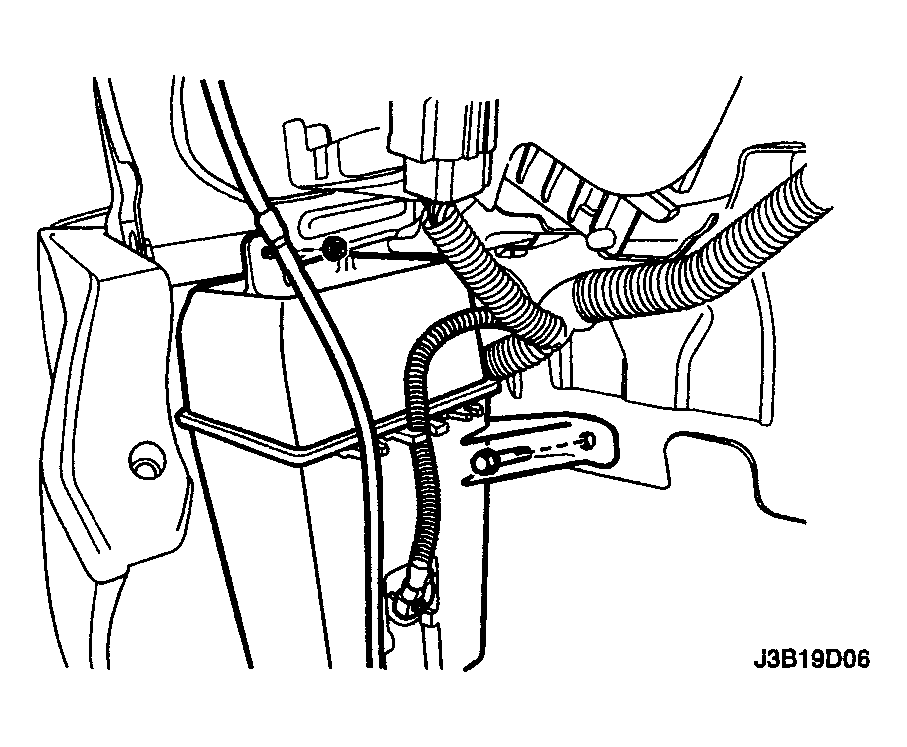

Fig 2: Removing Windshield Washer Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
