Windshield Washer Reservoir Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the reservoir with the bolts.

    Tighten

    Tighten the washer fluid reservoir bolts to 8 N.m (71 lb-in).

  2. Connect the reservoir pump electrical connector.
  3. Connect the washer hose to the washer pump.

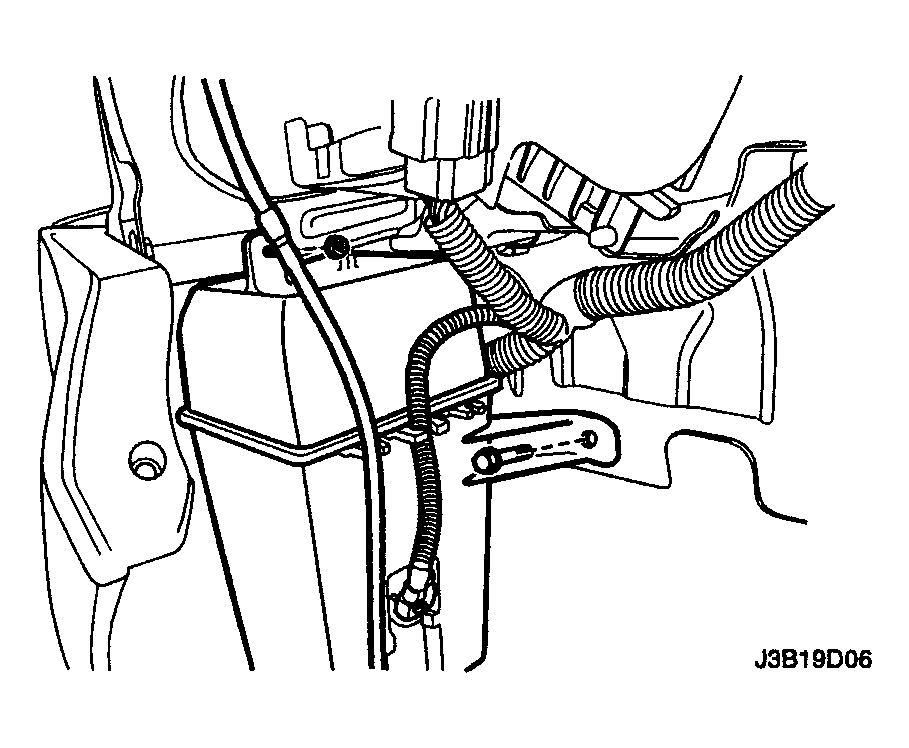

    Fig 1: Installing Windshield Washer Reservoir
    G04104452Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the front wheel well splash shield with the bolts and the screws.

    Tighten

    Tighten the front wheel well splash shield bolts to 1.5 N.m (13 lb-in).

  5. Install the front left wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  6. Connect the negative battery cable.

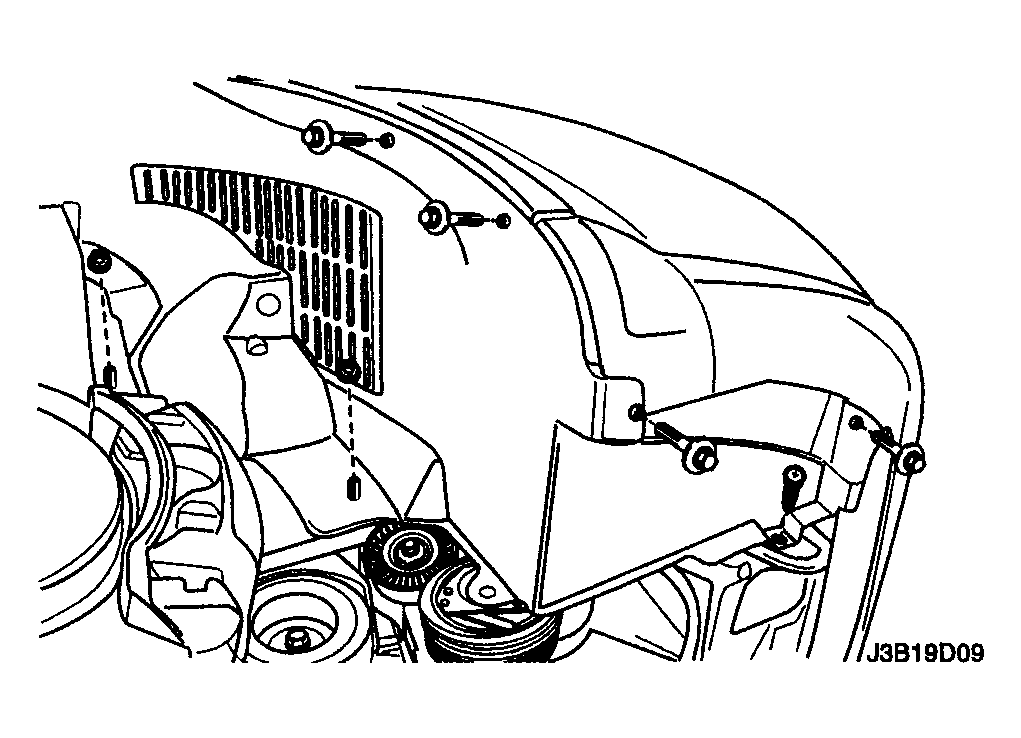

    Fig 2: Installing Front Wheel Well Splash Shield
    G04104453Courtesy of SUZUKI OF AMERICA CORP.
