Windshield Washer Pump(s) Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the front left wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
- Remove the bolts, the screws and the front wheel well splash shield.

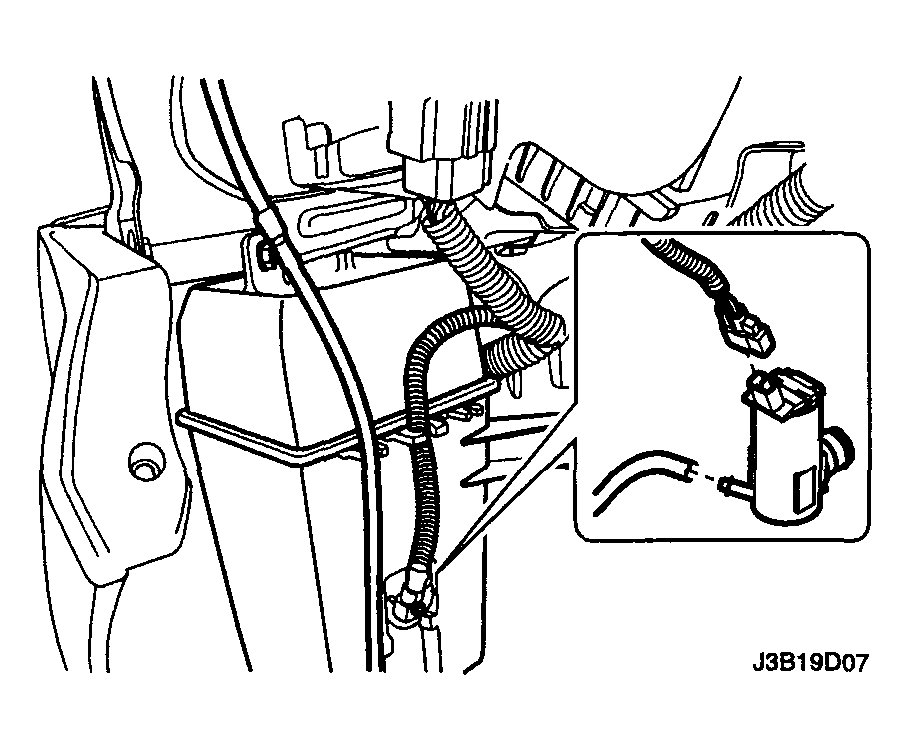

- Disconnect the electrical connector.
- Disconnect the washer hose from the washer pump.
- Remove the washer pump.
