Rear Window Wiper Motor Removal and Installation for Station Wagon Model: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the rear wiper motor with the bolts.
Tighten

Tighten the wiper motor bolts to 9 N.m (80 lb-in).
Install the station wagon door trim cover. Refer to "TAILGATE LOWER GARNISH MOLDING REMOVAL AND INSTALLATION :".
Install the rear window wiper arm. Refer to "REAR WINDOW WIPER ARM REMOVAL AND INSTALLATION FOR STATION WAGON MODEL :".
Connect the negative battery cable.

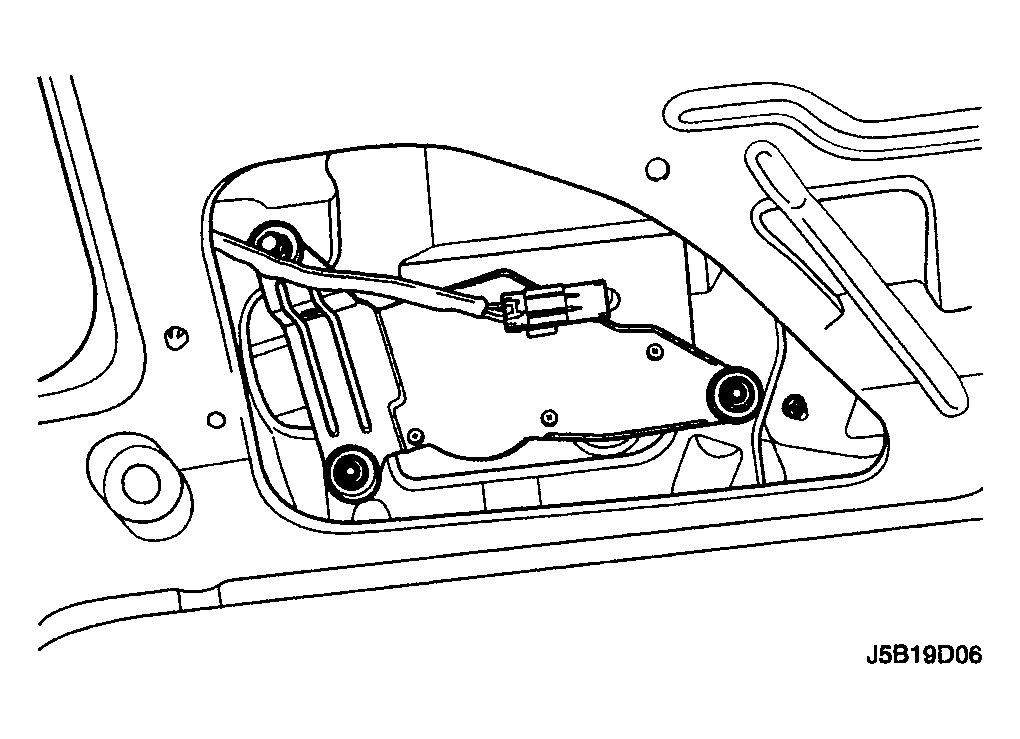

Fig 1: Installing Rear Window Wiper Motor (For Station Wagon Model)
Courtesy of SUZUKI OF AMERICA CORP.
