Rear Bumper Fascia Removal and Installation (For Hatchback Model): Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheels. Refer to "WHEEL REMOVAL AND INSTALLATION :".
Remove the screws and the splash shields.
Remove the screws behind the fascia.

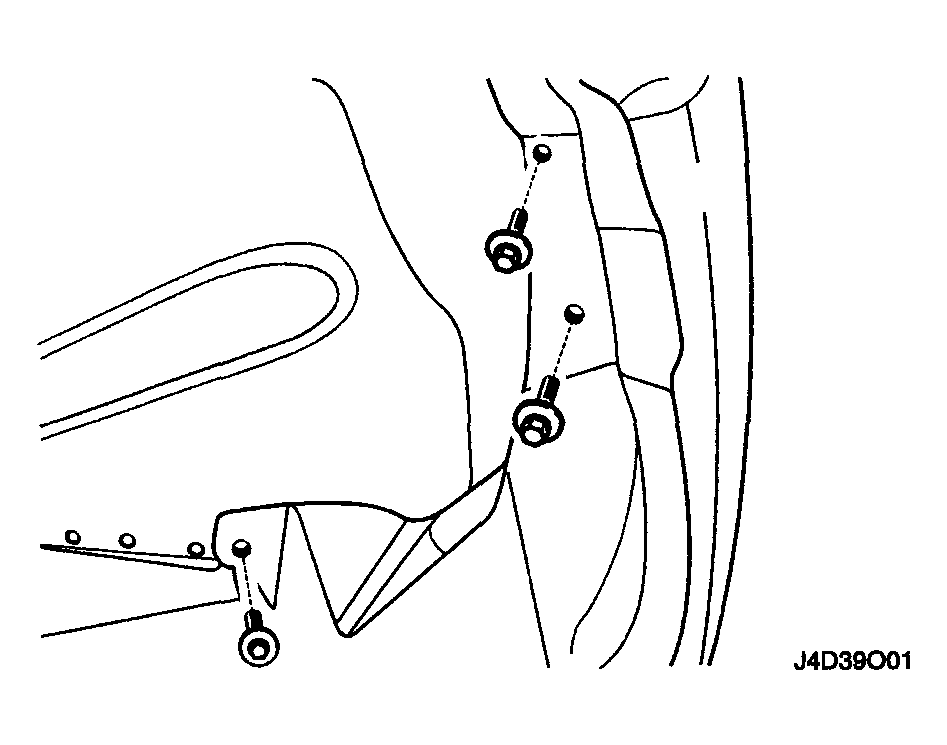

Fig 1: Removing Screws Behind Fascia
Courtesy of SUZUKI OF AMERICA CORP.
Remove the luggage compartment wheelhouse trim panels. Refer to "LUGGAGE COMPARTMENT WHEELHOUSE TRIM PANEL REMOVAL AND INSTALLATION :".
Remove the bolts and the nuts in the luggage compartment.

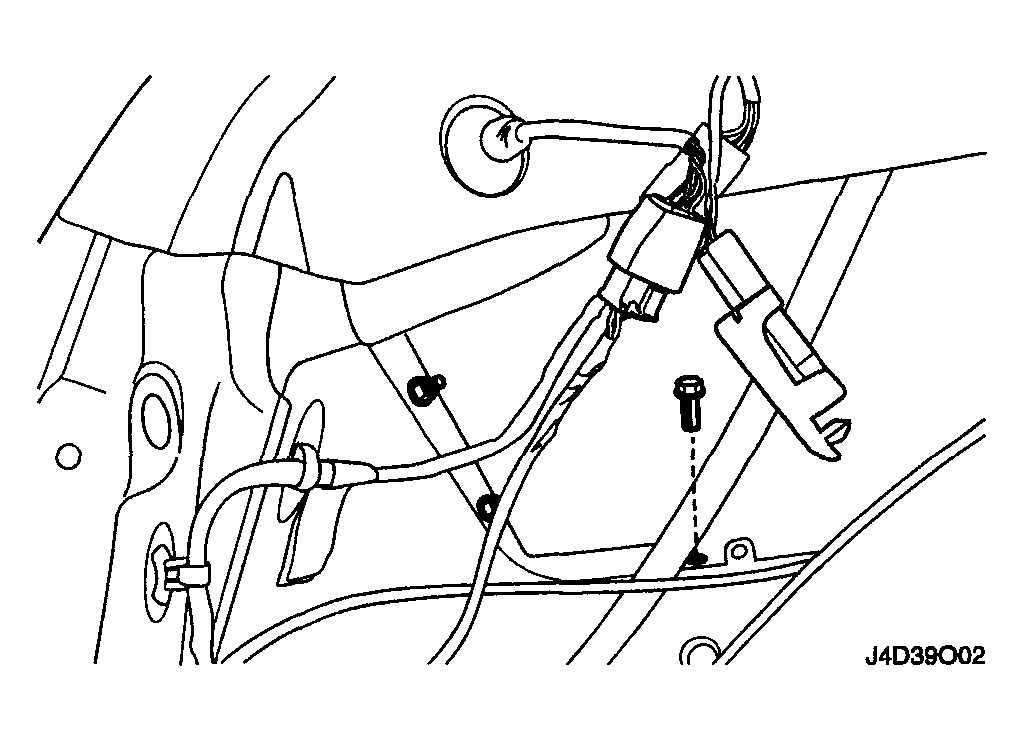

Fig 2: Removing Bolts And Nuts In Luggage Compartment
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screws.
Remove the rear bumper fascia.

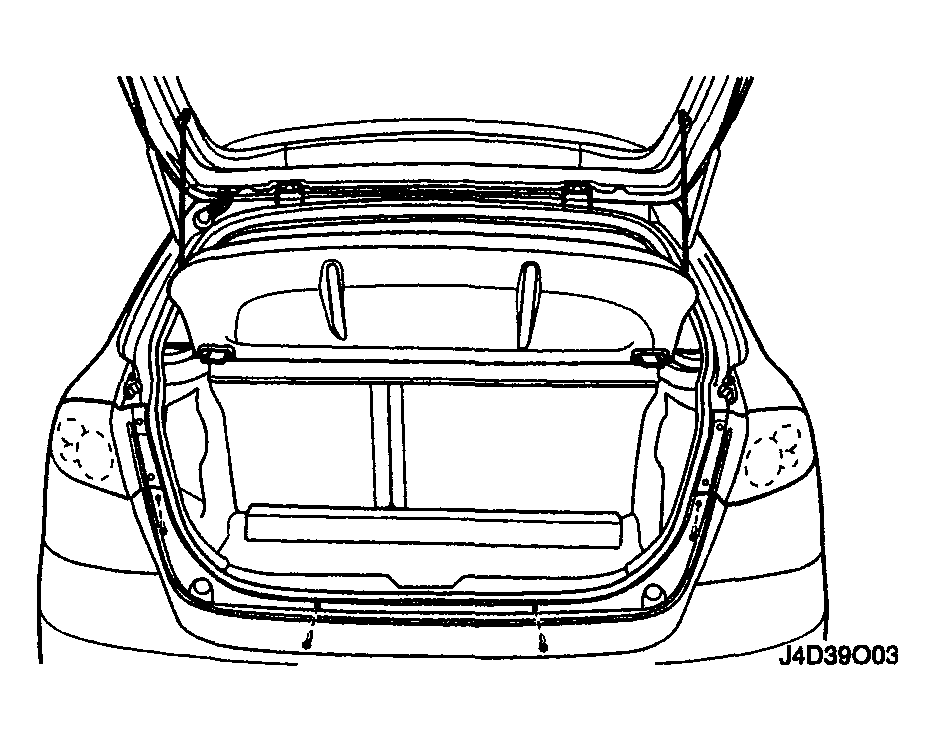

Fig 3: Removing Rear Bumper Fascia
Courtesy of SUZUKI OF AMERICA CORP.
