Front Bumper Impact Bar Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector.
  2. Remove the front bumper fascia. Refer to "FRONT BUMPER FASCIA REMOVAL AND INSTALLATION :".
  3. Remove the front bumper energy absorber. Refer to "FRONT BUMPER ENERGY ABSORBER REMOVAL AND INSTALLATION :".
  4. Remove the bolts and the front bumper impact bar.

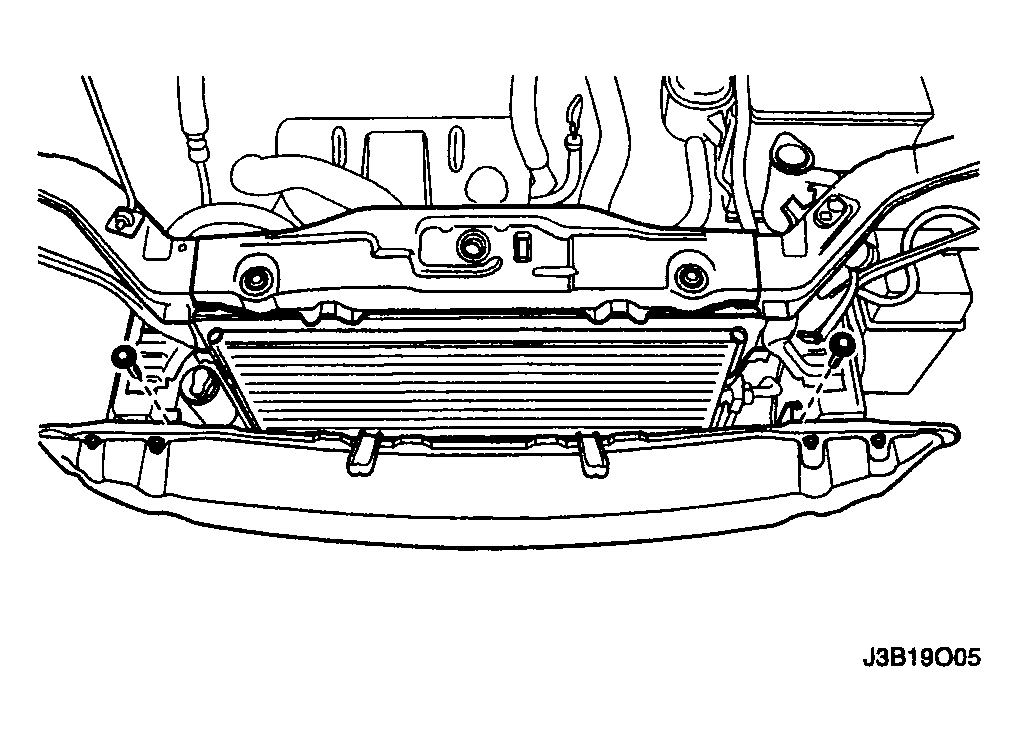

    Fig 1: Removing Bolts And Front Bumper Impact Bar
    G04104757Courtesy of SUZUKI OF AMERICA CORP.
