Front Bumper Impact Bar Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the front impact bar with the bolts.

    Tighten

    Tighten the front impact bar bolts to 39 N.m (29 lb-ft).

  2. Install the front bumper energy absorber. Refer to "FRONT BUMPER ENERGY ABSORBER REMOVAL AND INSTALLATION :".
  3. Install the front bumper fascia. Refer to "FRONT BUMPER FASCIA REMOVAL AND INSTALLATION :".
  4. Connect the electrical connector.

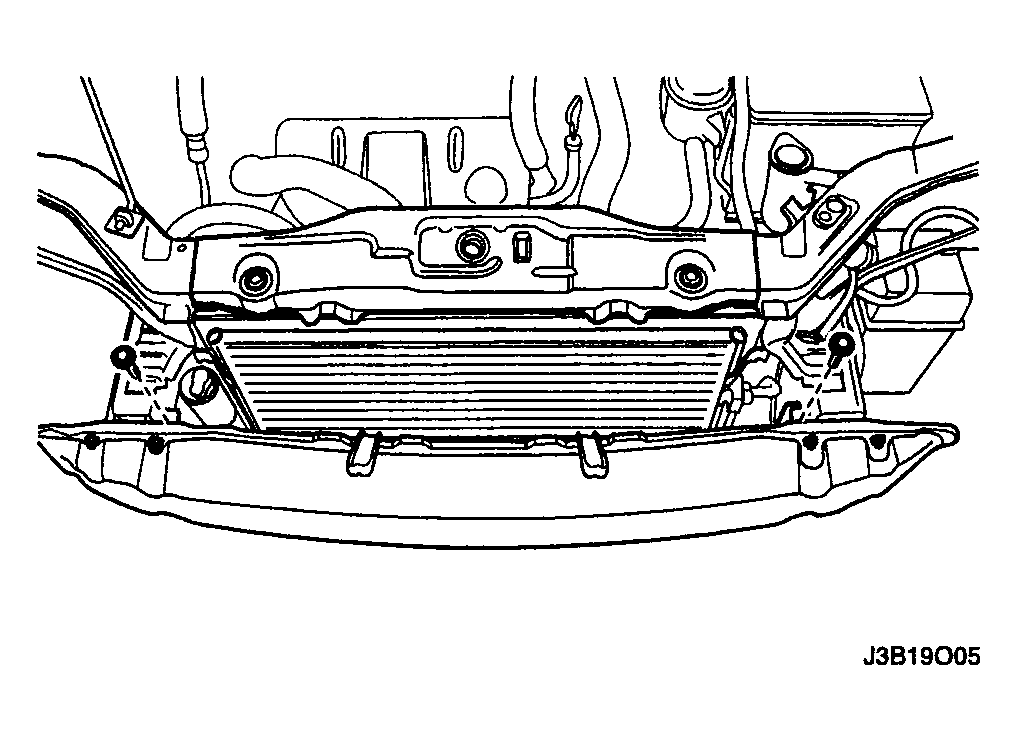

    Fig 1: Tightening Front Impact Bar Bolts
    G04104758Courtesy of SUZUKI OF AMERICA CORP.
