Front Bumper Fascia Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front wheel well splash shields. Refer to "FRONT WHEEL WELL SPLASH SHIELD REMOVAL AND INSTALLATION :".
  3. Remove the fog lamps and the headlamps. Refer to "FRONT FOG LAMPS REMOVAL AND INSTALLATION :" and "HEADLAMPS / FRONT TURN SIGNAL LAMPS / PARKING LAMPS REMOVAL AND INSTALLATION :".
  4. Remove the fender-to-fascia bolts and the screws.

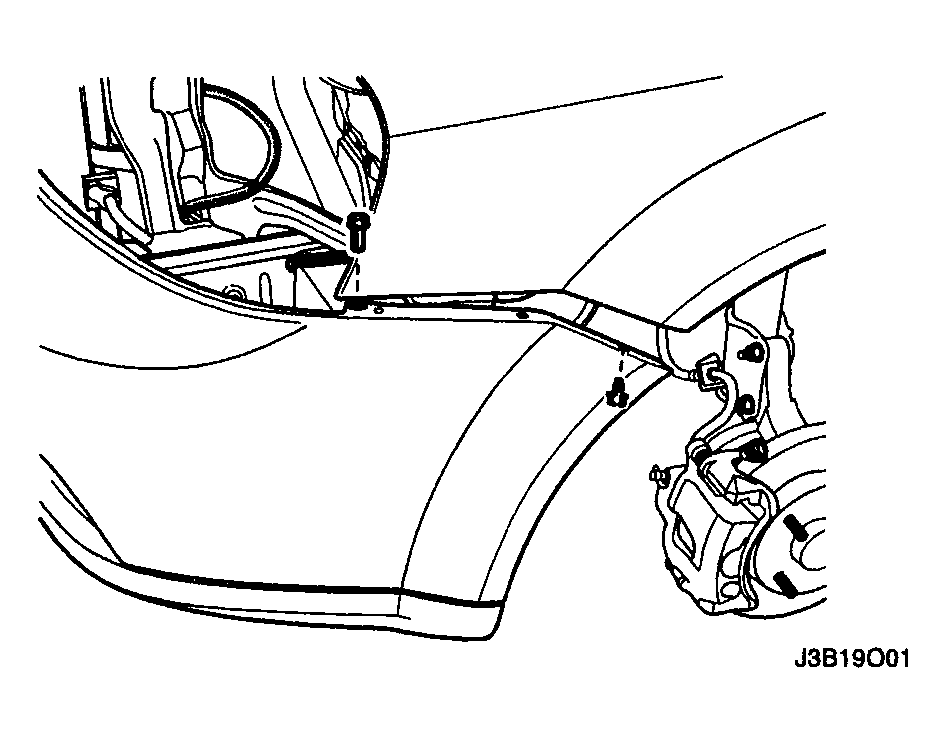

    Fig 1: Removing Fender-To-Fascia Bolts And Screws
    G04104749Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the lower fascia clips.

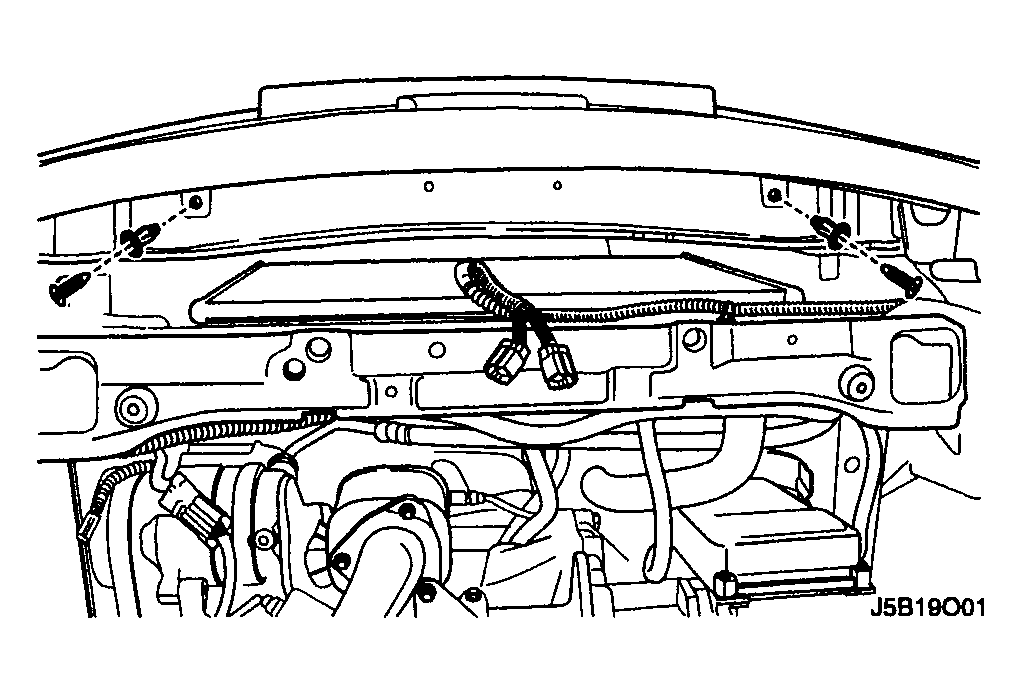

    Fig 2: Removing Lower Fascia Clips
    G04104750Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove the upper fascia clips.
  7. Remove the front bumper fascia.

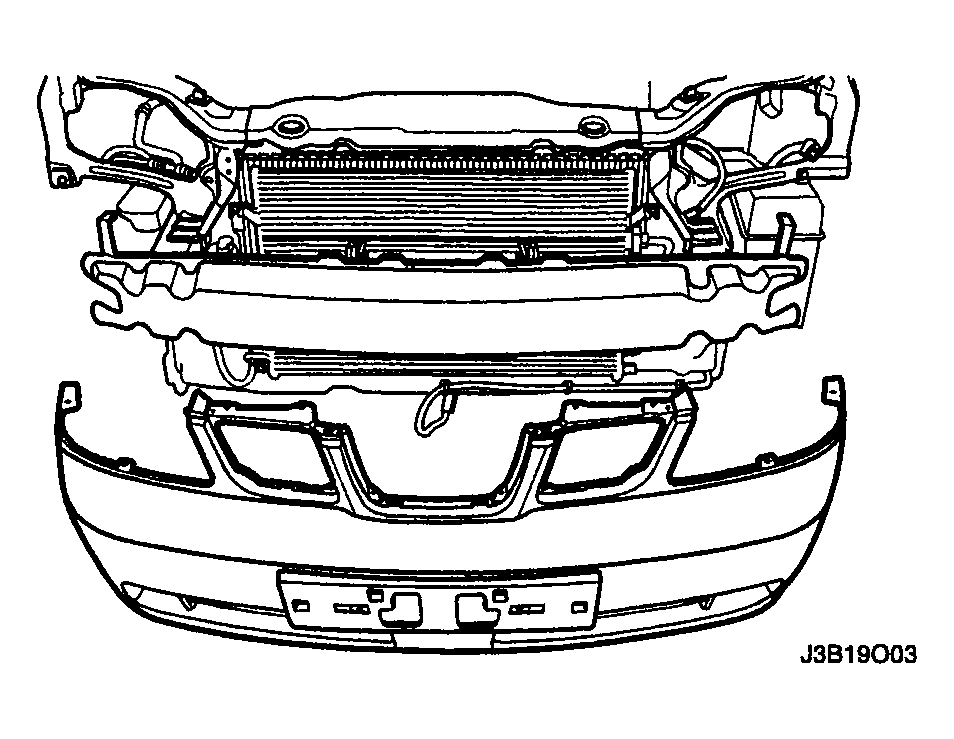

    Fig 3: Removing Front Bumper Fascia
    G04104751Courtesy of SUZUKI OF AMERICA CORP.
