Turn and Hazard Lamps Circuit Diagram (For STATION WAGON Model)
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

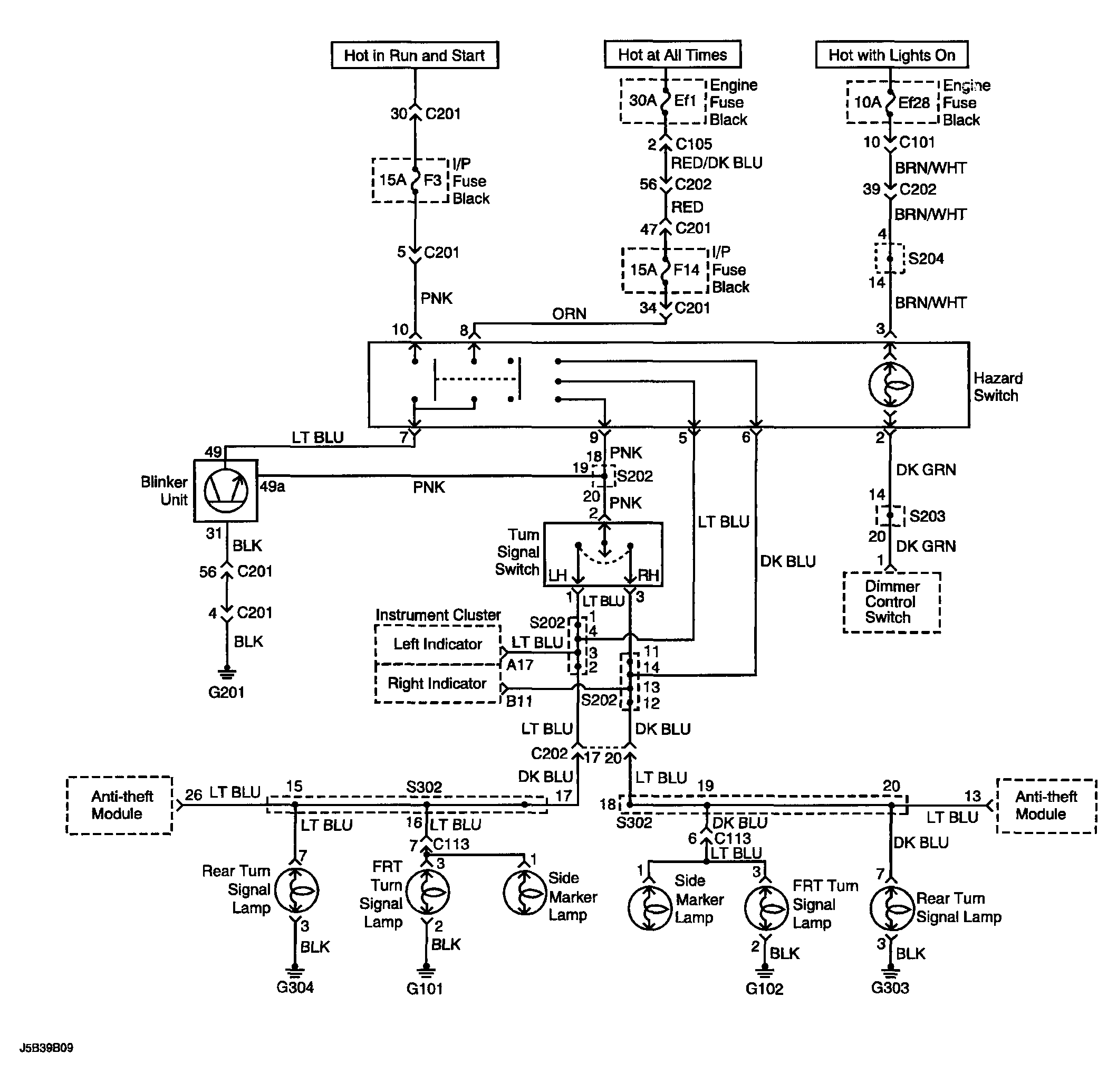

Fig 1: Turn And Hazard Lamps - Circuit Diagram (For STATION WAGON Model)
