Luggage Compartment Lamp Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the luggage compartment lamp.
  3. Disconnect the electrical connector.
  4. Remove the bulb.

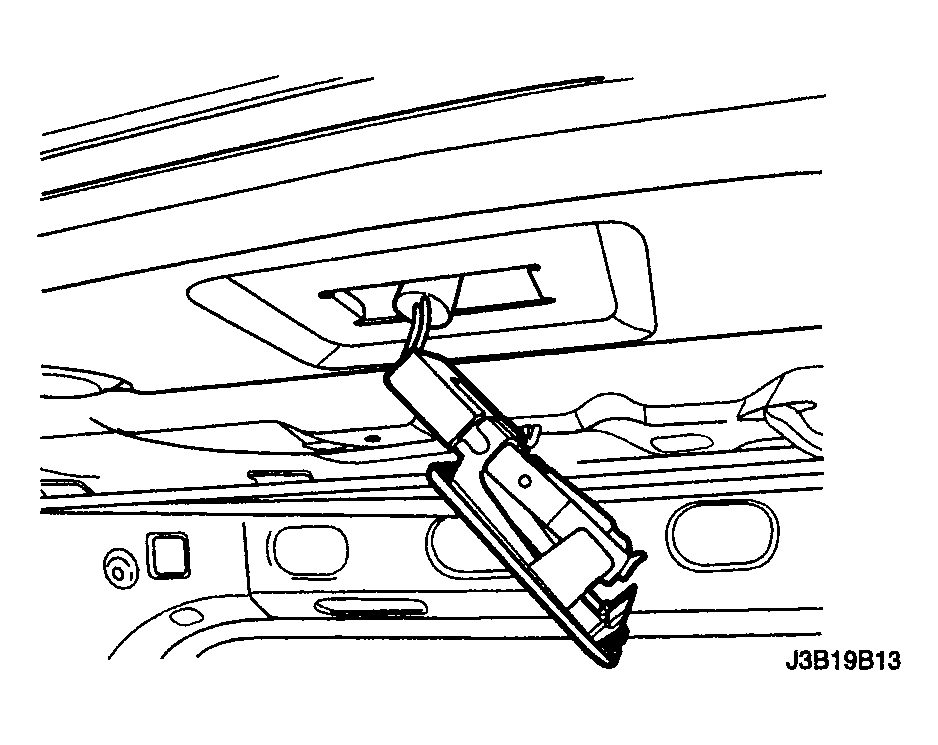

    Fig 1: Removing Luggage Compartment Lamp
    G04104380Courtesy of SUZUKI OF AMERICA CORP.
