Front Fog Lamps Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the bolts and the front fog lamp.
Disconnect the electrical connector.

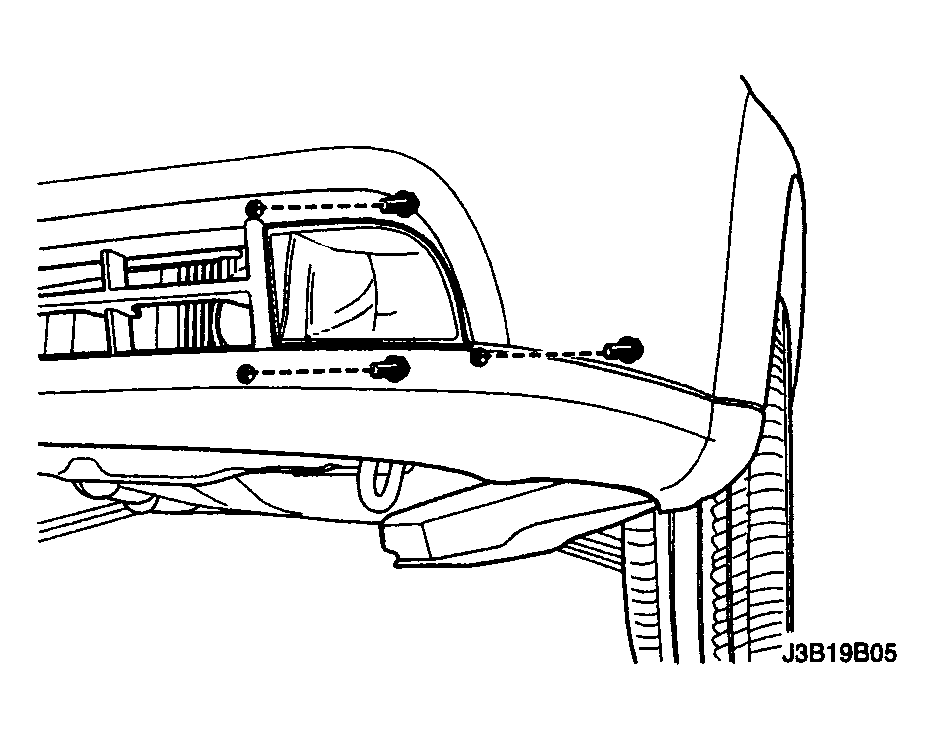

Fig 1: Removing Front Fog Lamp
Courtesy of SUZUKI OF AMERICA CORP.
Remove the fog lamp access cover.
Remove the retaining wire.
Remove the bulb.

Fig 2: Removing Bulb
Courtesy of SUZUKI OF AMERICA CORP.
