Center High Mount Stoplamp Removal and Installation (For Station Wagon Model): Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the center high mounted stoplamp.
Install the center high mounted stoplamp nuts.
Tighten

Tighten the center high mounted stoplamp nuts to 4 N.m (35 lb-in).
Install the license plate lamps bracket.
Install the license plate lamps bracket bolts and nuts.
Install the station wagon door latch rod.
Install the rear wiper motor. Refer to "REAR WINDOW WIPER MOTOR REMOVAL AND INSTALLATION FOR HATCHBACK MODEL :".
Connect the electrical connector.

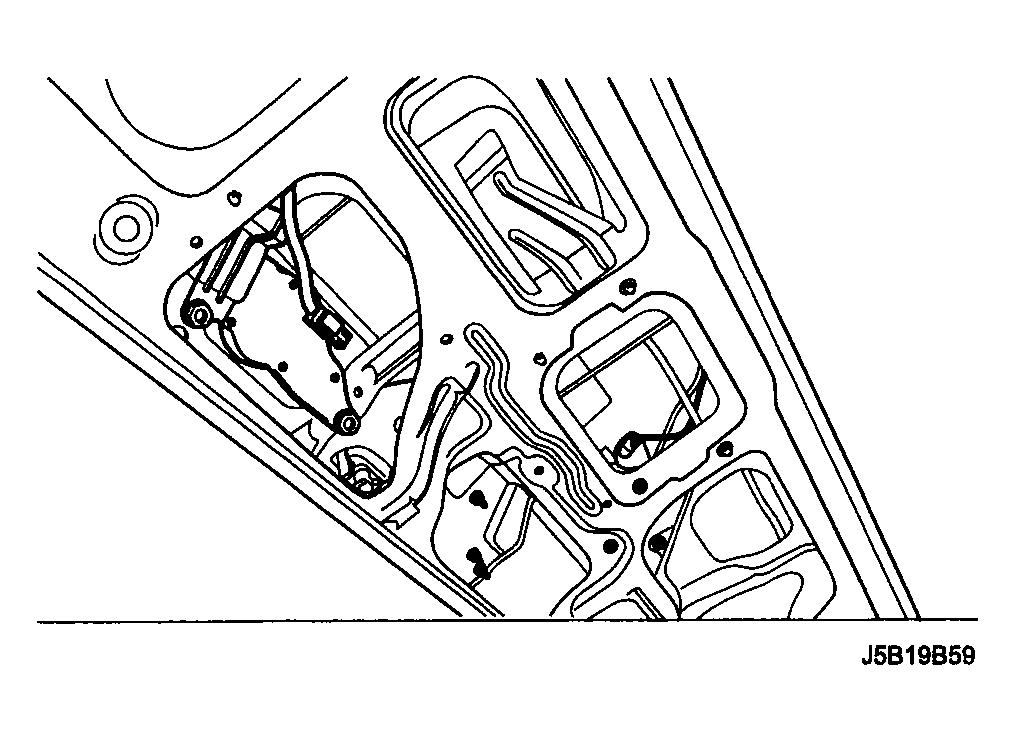

Fig 1: Connecting Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the tail gate trim cover.
Install the tail gate trim cover screws.
Connect the negative battery cable.

Fig 2: Installing Tail Gate Trim Cover
Courtesy of SUZUKI OF AMERICA CORP.
