Blower Resistor Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

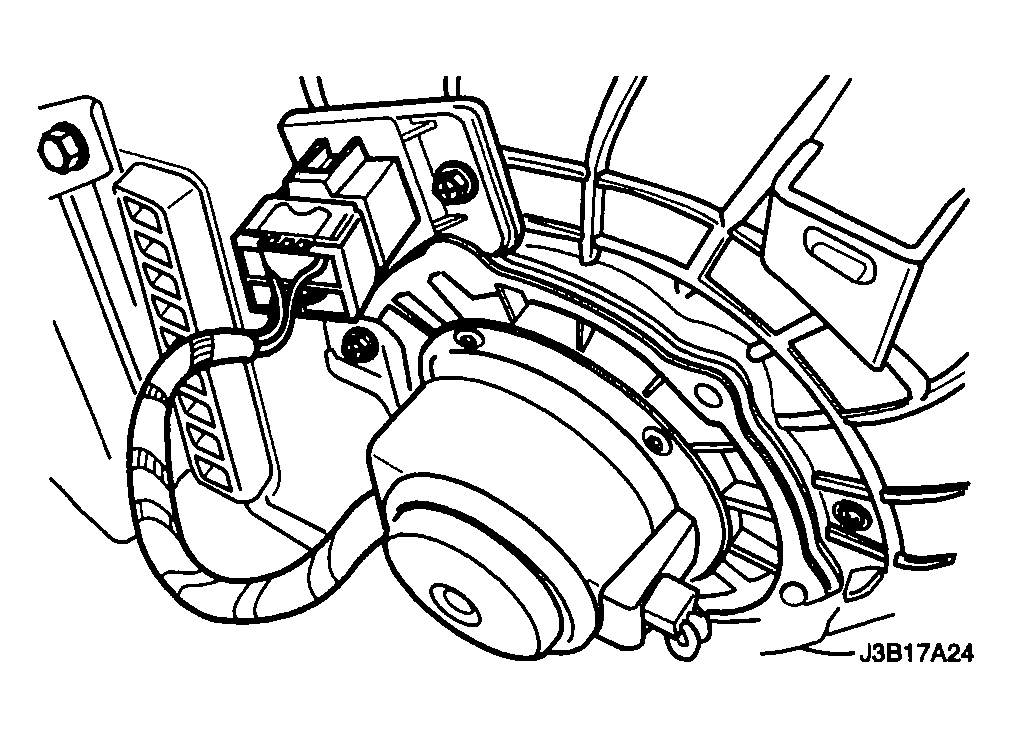

- Install the resistor into the heater/air distributor case with the screws.
Tighten
Tighten the blower motor resistor screws to 1.2 N.m (11 lb-in).
- Connect the electrical connector at the resistor.
- Connect the negative battery cable.
- Confirm the proper performance of the blower.
- Install the glove box. Refer to "GLOVE BOX REMOVAL AND INSTALLATION :".
