DTC B1414: Driver Side Airbag Sensor Wrong ID: Notes

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

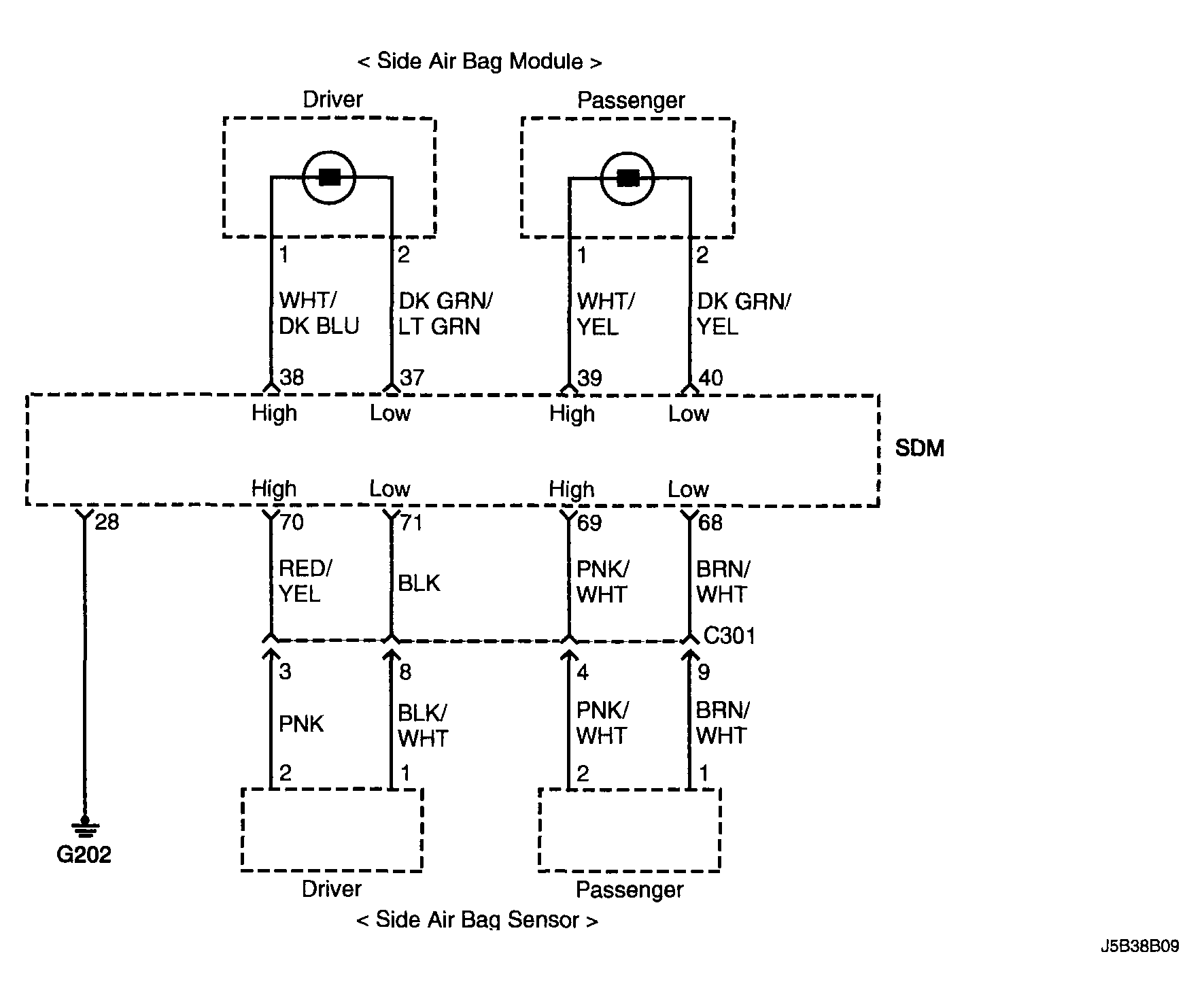

Fig 1: DTC B1414 Driver Side Airbag Sensor Wrong ID - Wiring Diagrams
G04104285Courtesy of SUZUKI OF AMERICA CORP.
