DTC B1330: Early Crash Sensor Driver (LH) Wrong ID: Notes

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

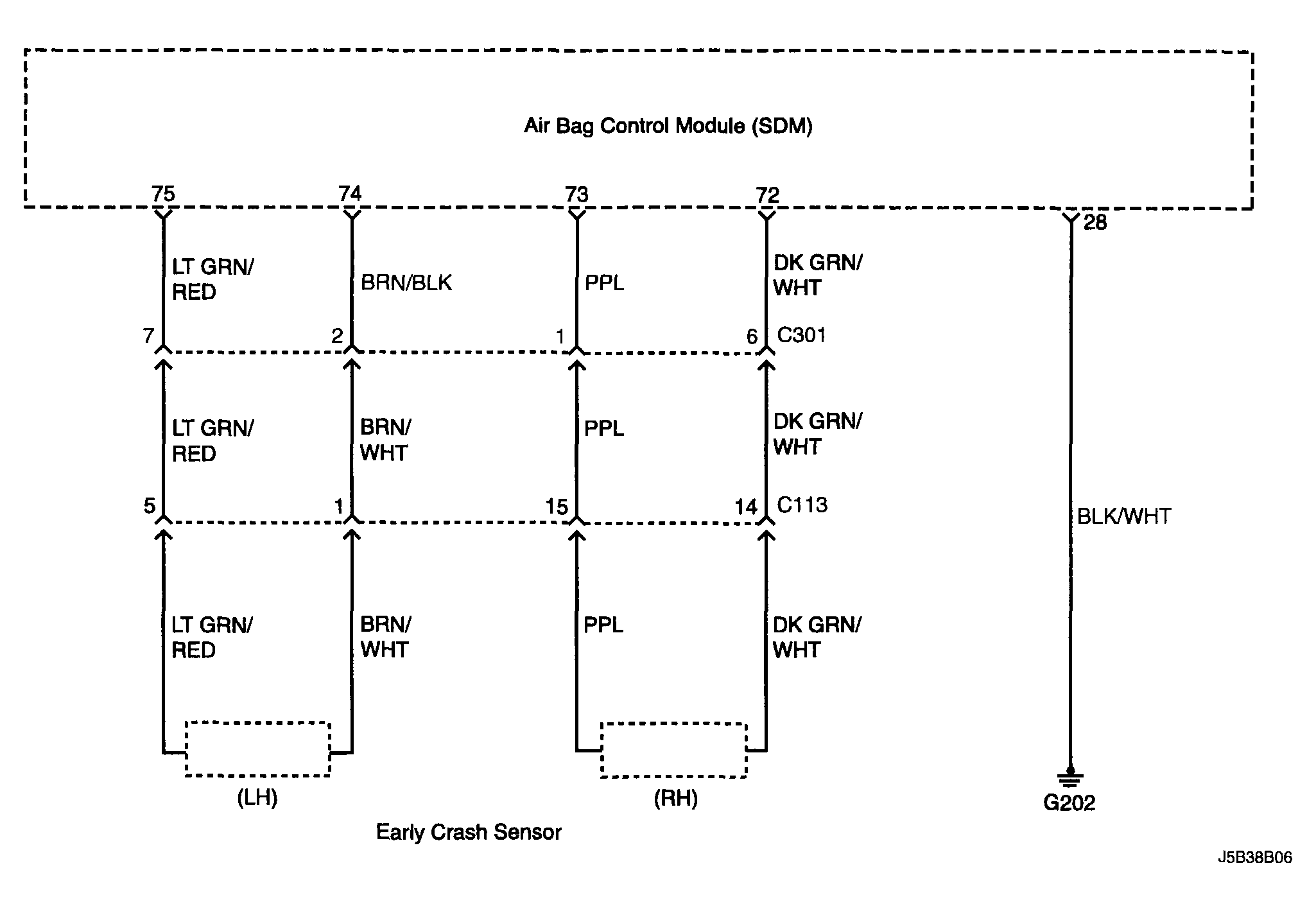

Fig 1: DTC B1330 Early Crash Sensor Driver (LH) Wrong ID - Wiring Diagrams
G04104246Courtesy of SUZUKI OF AMERICA CORP.
