Engine Under Covers Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the bolts and the engine under cover.

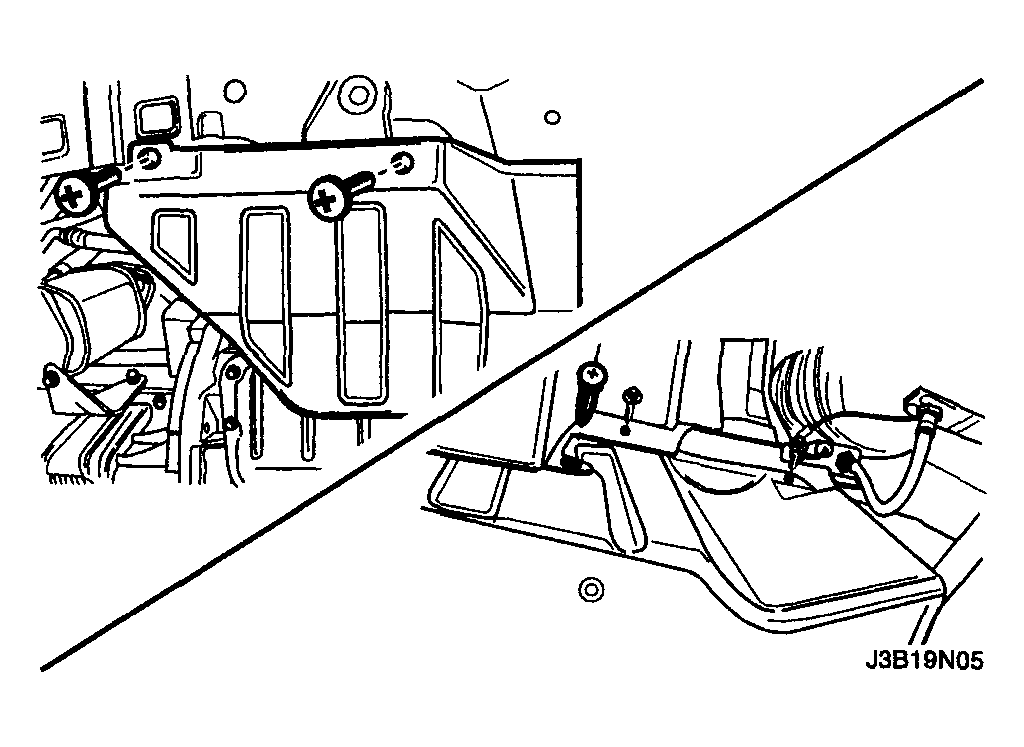

    Fig 1: Removing Engine Under Covers
    G04104862Courtesy of SUZUKI OF AMERICA CORP.
