Outer Tie Rod Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  2. Mark the threads on the inner tie rod to aid in repositioning the adjusting nut.
  3. Remove the outer tie rod nut and disconnect the outer tie rod from the steering knuckle using the ball joint remover KM-507-B.

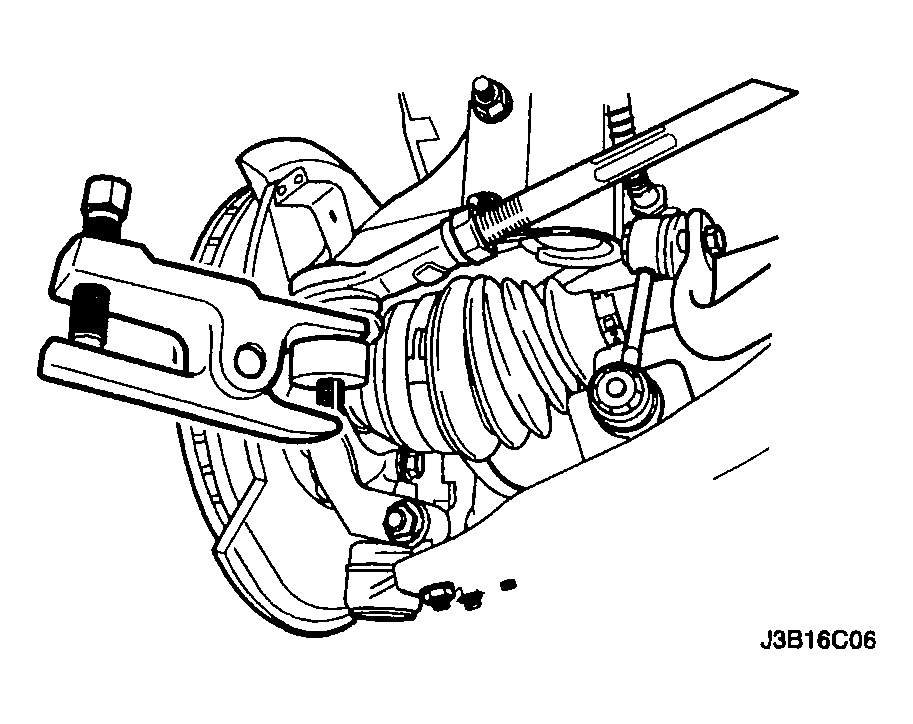

    Fig 1: Identifying Outer Tie Rod Nut
    G04103964Courtesy of SUZUKI OF AMERICA CORP.
  4. Loosen the outer tie rod adjusting nut and remove the outer tie rod by twisting it off the inner tie rod.

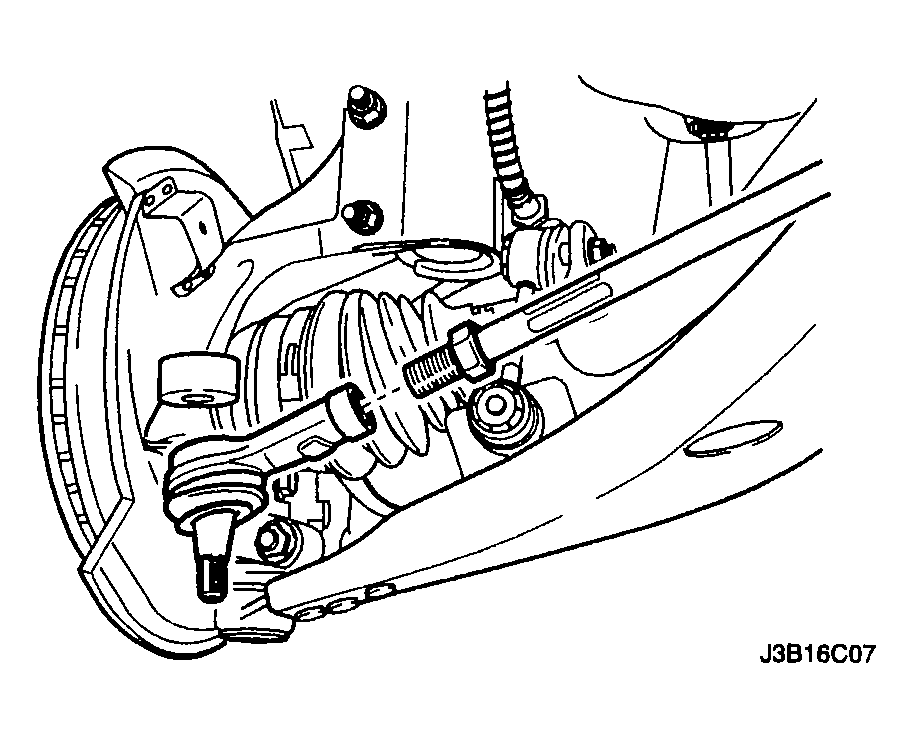

    Fig 2: Identifying Outer Tie Rod And Adjusting Nut
    G04103965Courtesy of SUZUKI OF AMERICA CORP.
