Hydraulic Cylinder Lines Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Siphon the power steering fluid from the fluid reservoir.
  2. Raise and suitably support the vehicle.
  3. Disconnect the power steering gear hydraulic cylinder pipes from the power steering gear at the valve end. Replace the O-ring seals as needed.

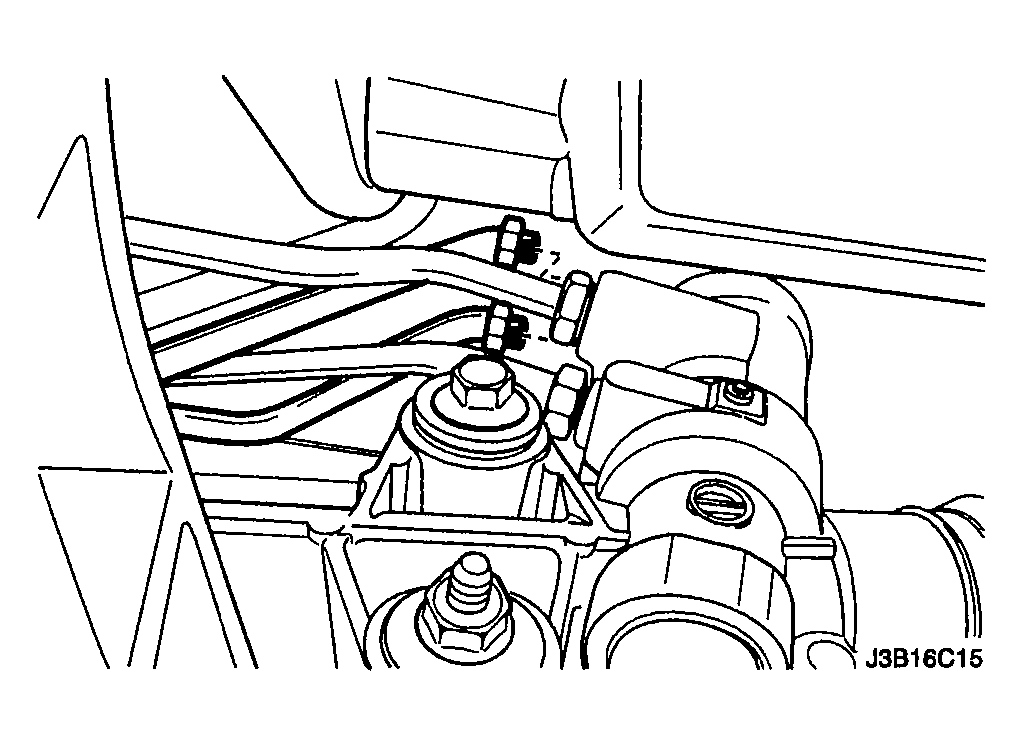

    Fig 1: Identifying Power Steering Gear Hydraulic Cylinder Pipes
    G04103980Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the power steering gear hydraulic cylinder pipes from the power steering gear at the cylinder end.
  5. Remove the steering gear hydraulic cylinder pipes from the vehicle.
    Fig 2: Identifying Steering Gear Hydraulic Cylinder Pipes
    G04103981Courtesy of SUZUKI OF AMERICA CORP.
