Hydraulic Cylinder Lines Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate any new O-ring seals with power steering fluid.
Place the O-ring seals into the housing and install the steering gear hydraulic cylinder pipes.
Connect the power steering gear hydraulic cylinder pipes to the power steering gear at the valve end.
Tighten

Tighten the hydraulic cylinder line fittings at the valve end to 18 N.m (13 lb-ft).

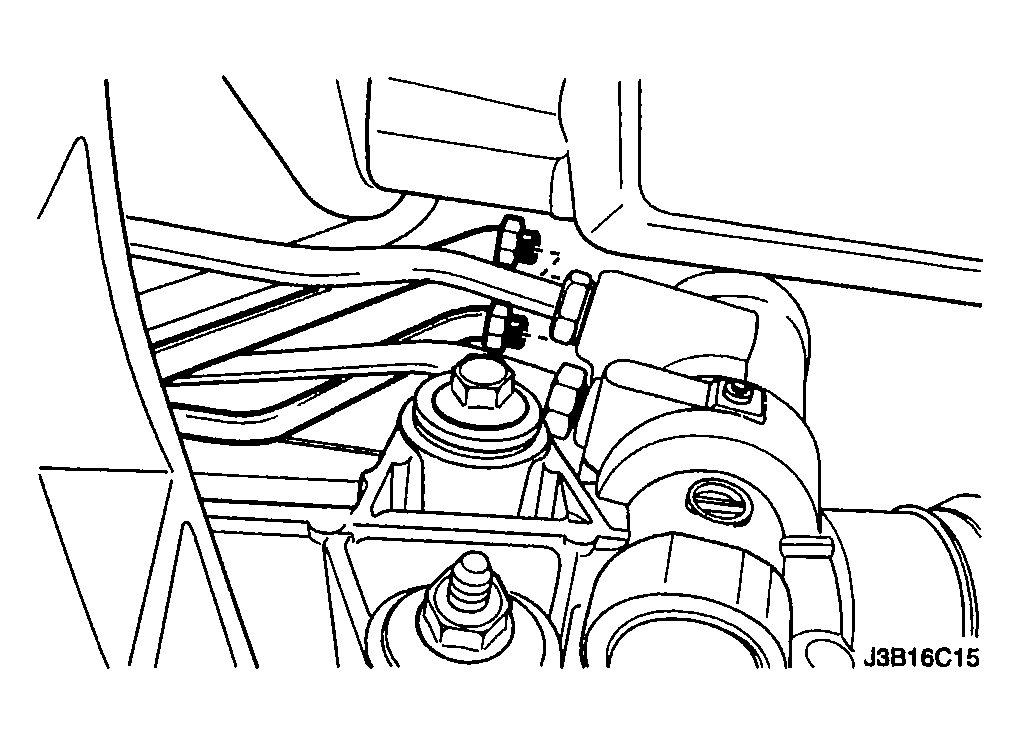

Fig 1: Connecting Power Steering Gear Hydraulic Cylinder Pipes To Power Steering Gear At Valve End
Courtesy of SUZUKI OF AMERICA CORP.
Connect the power steering gear hydraulic cylinder pipes to the power steering gear at the cylinder end.
Tighten

Tighten the hydraulic cylinder line fittings at the cylinder end to 28 N.m (21 lb-ft).
Lower the vehicle.
CAUTION: When adding fluid or making a complete change, always use DEXRON®-II or III power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.

Fig 2: Connecting Power Steering Gear Hydraulic Cylinder Pipes To Power Steering Gear At Cylinder End
Courtesy of SUZUKI OF AMERICA CORP.
Fill the fluid reservoir with power steering fluid.
Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system. Refer to "POWER STEERING SYSTEM LEAK TEST :".
