Fluid Reservoir Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Siphon the power steering fluid from the fluid reservoir.
  2. Loosen the hose clamps and remove both hoses from the fluid reservoir.
  3. Remove the fluid reservoir nuts.

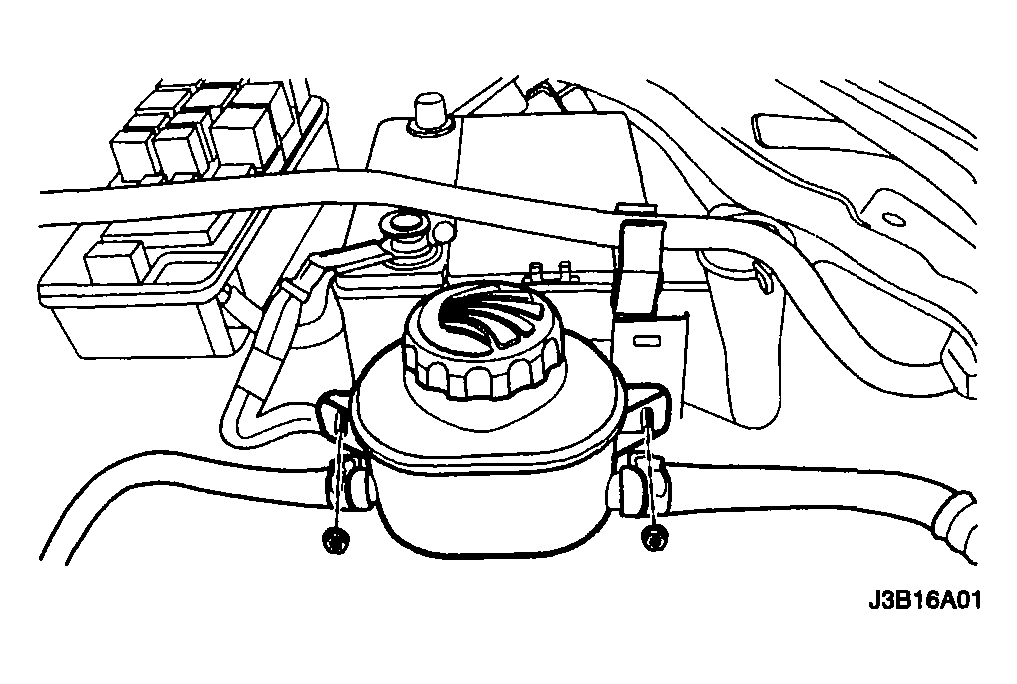

    Fig 1: Removing Fluid Reservoir Nuts
    G04104027Courtesy of SUZUKI OF AMERICA CORP.
