Concentric Slave Cylinder Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle from the vehicle. Refer to "TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION :".
Remove the concentric slave cylinder retaining bolts.
Disconnect the concentric slave cylinder pipe from the concentric slave cylinder.

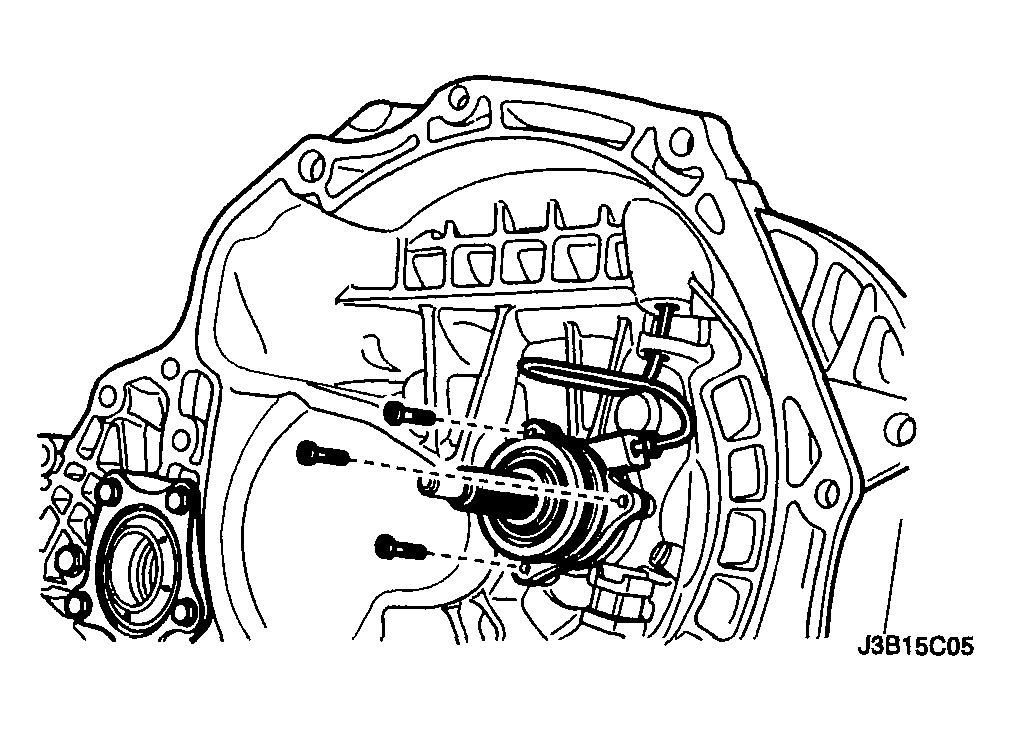

Fig 1: Removing Concentric Slave Cylinder Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: When removing the bushing, Make sure not to remove it with excessive force.
Remove the bushing from the concentric slave cylinder pipe in the transaxle housing.
Remove the concentric slave cylinder pipe.

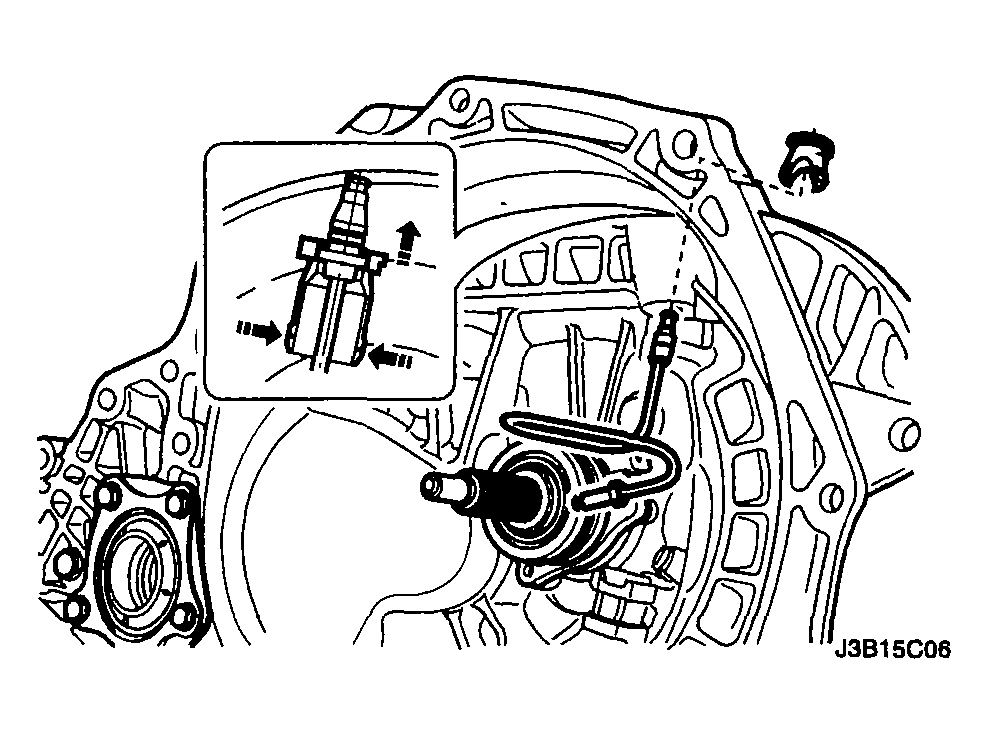

Fig 2: Removing Concentric Slave Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: For removal or installation, Make sure not to separate oil seal fixing spring from the back side of the concentric slave cylinder.
Remove the O-ring and the concentric slave cylinder.

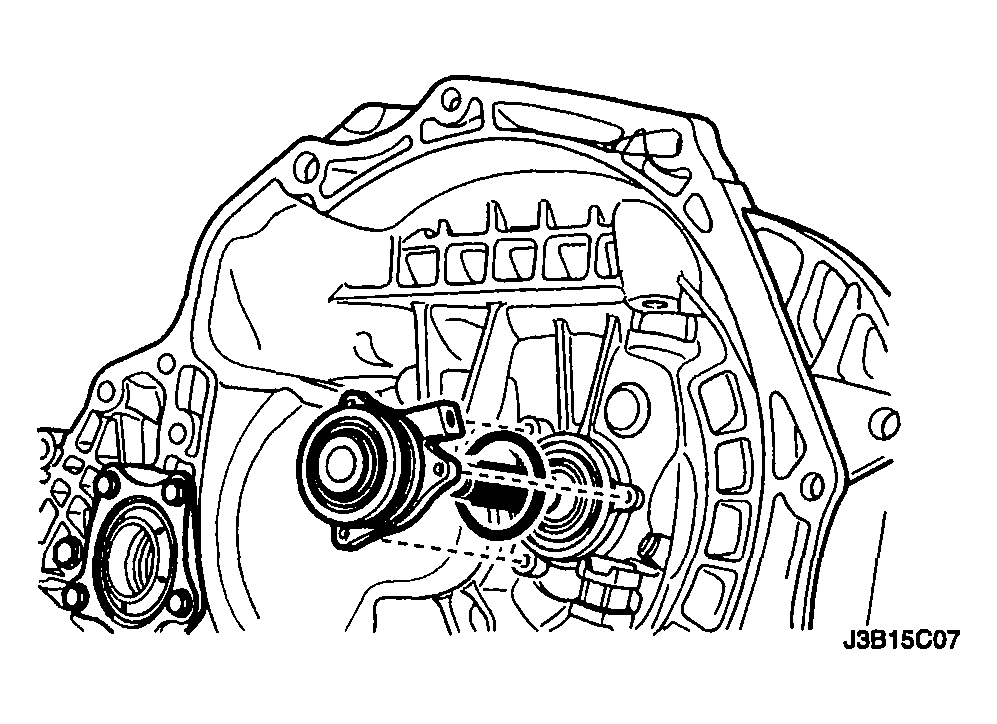

Fig 3: Removing O-Ring And Concentric Slave Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
