Stoplamp Switch Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the stoplamp switch into the plug connector.
  2. Twist the stoplamp switch into the brake pedal bracket hole.
  3. Depress the brake pedal and pull the switch plunger to its maximum setting to adjust the switch.
  4. Release the plunger and pull up on the pedal.
  5. Connect the negative battery cable.

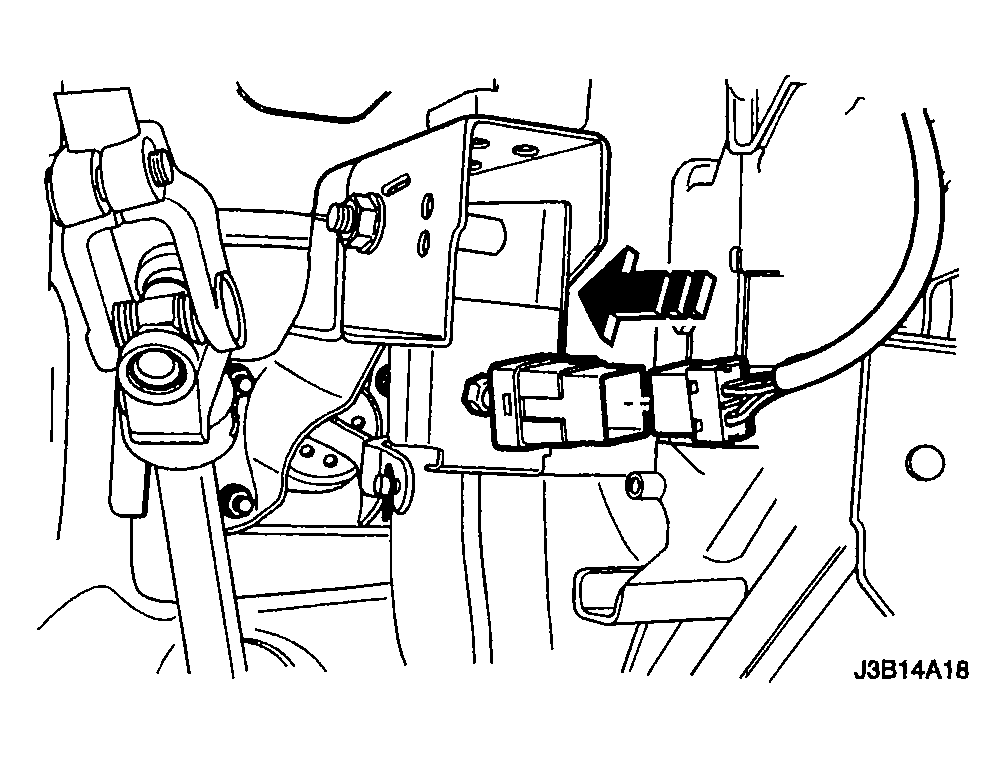

    Fig 1: Connecting Stoplamp Switch To Plug Connector
    G04103265Courtesy of SUZUKI OF AMERICA CORP.
