ABS 5.3 Assembly Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

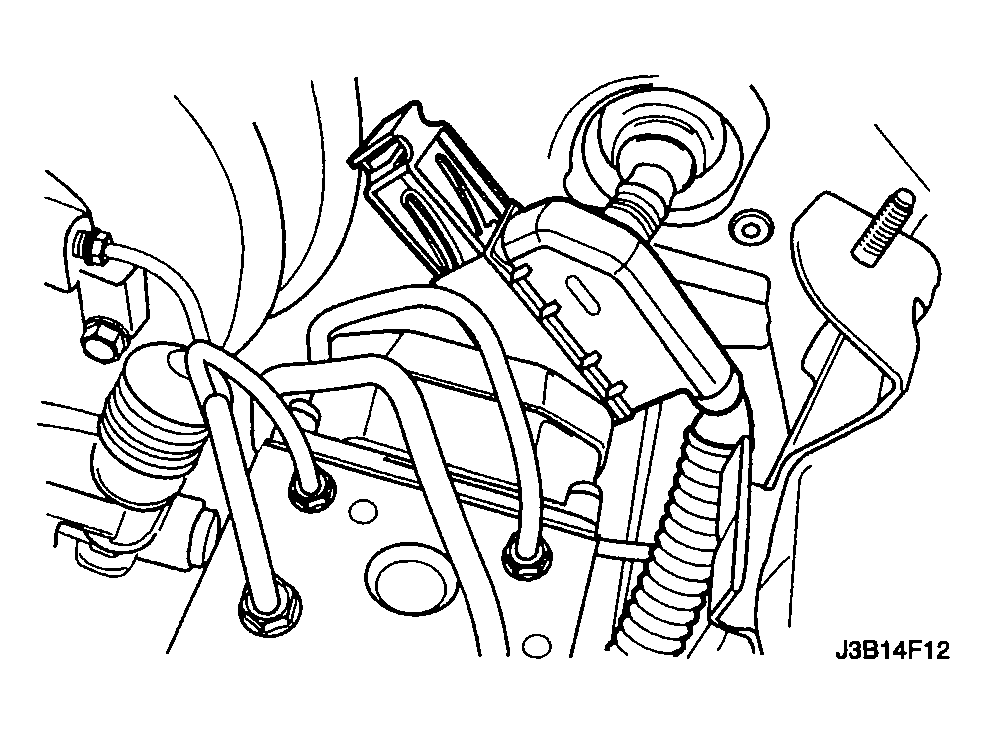

- Disconnect the 31-pin ABS wiring harness connector from its socket on the EBCM.
- Cover the connector and the socket with shop cloths to protect them from brake fluid.
Courtesy of SUZUKI OF AMERICA CORP.

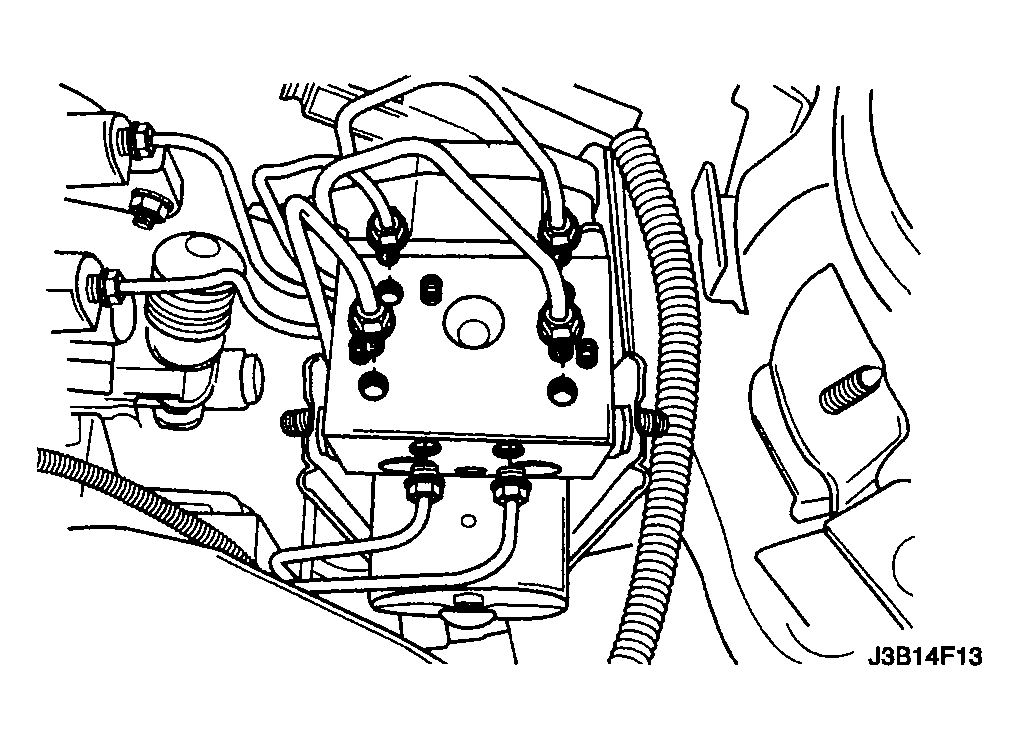

NOTE: Take care not to allow air into the hydraulic unit or into the brake pipes from the master cylinder. If air gets into the hydraulic unit, it will require a bleeding procedure using a scan tool programmed for the ABS 5.3 system. As long as no air enters the hydraulic unit, a simple bleeding procedure is all the system will require. - Remove the brake pipes from the hydraulic unit. It may be necessary to loosen the brake pipe nuts on the master cylinder to allow for moving those pipes out of the way.
- Loosen the mounting nuts on the hydraulic unit.
- Move the brake pipes aside far enough to allow for lifting the ABS 5.3 unit out of the mounting bracket.
- Tighten the brake pipe nuts on the master cylinder to avoid leaking brake fluid.
- Cap the brake pipes.
