ABS 5.3 Assembly Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

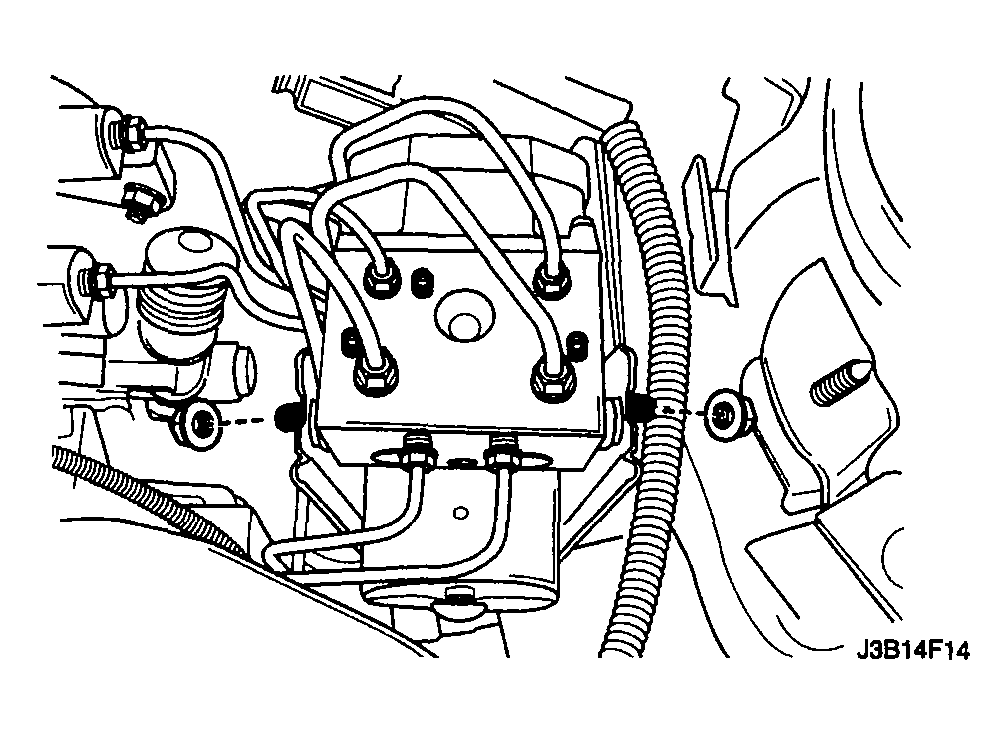

- Insert the ABS 5.3 hydraulic unit into its mounting bracket and install the nuts.
Tighten
Tighten the ABS 5.3 mounting nuts to 15 N.m (11 lb-ft).
- Remove the screw plugs and install all of the hydraulic brake pipes.
Tighten
Tighten the brake pipe nuts to 22 N.m (16 lb-ft).
- Connect the 31-pin wiring harness connector J1.
- Connect the negative battery cable.
- Bleed the hydraulic system. Refer to "MANUAL BLEEDING THE BRAKES :".
