ABS / EBD System Component Location

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

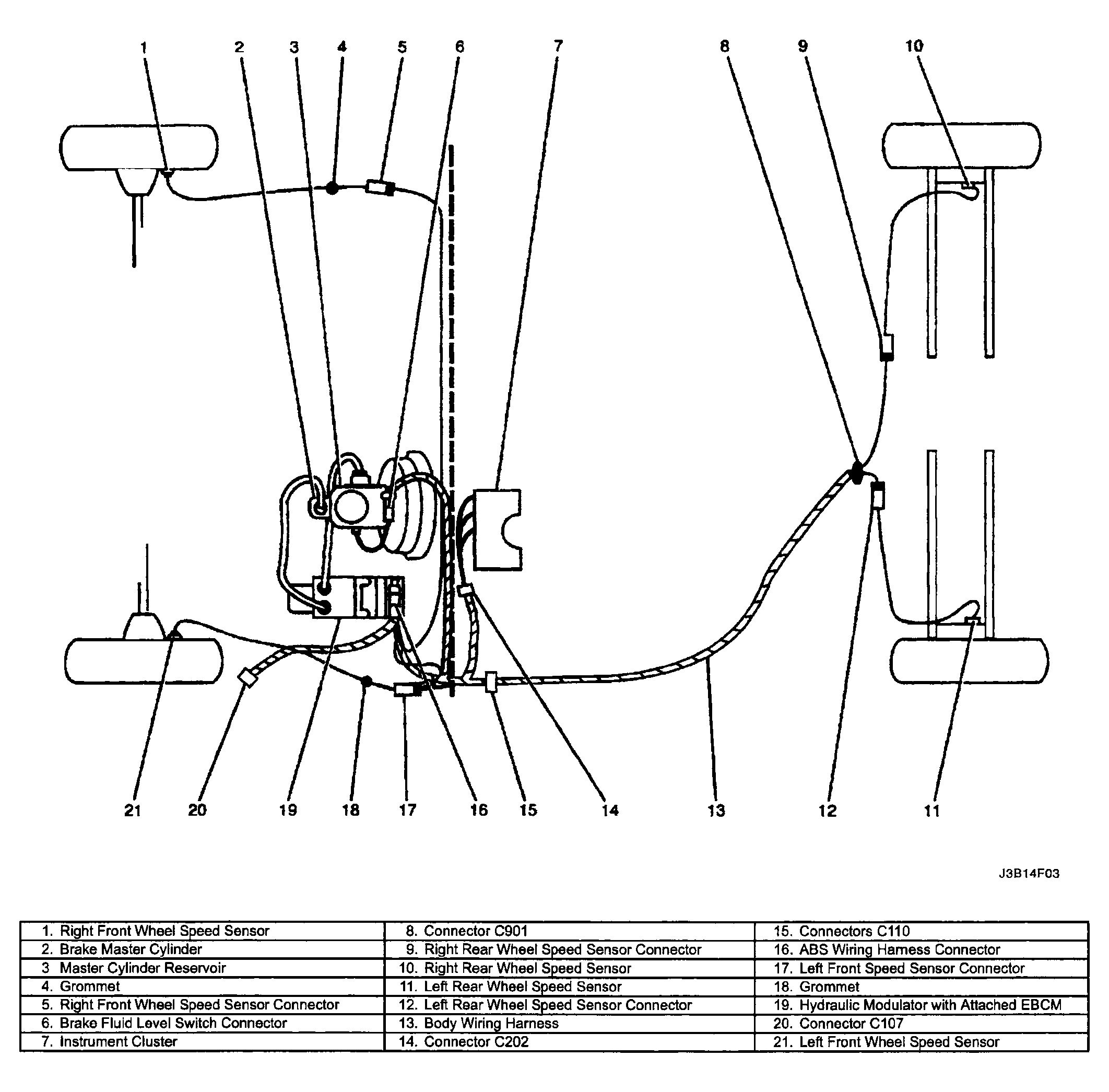

Fig 1: Identifying ABS/EBD System Components Location
G04103385Courtesy of SUZUKI OF AMERICA CORP.
