Rear Rocker Trim Panel Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the rear seat cushion.
  2. Remove the rear rocker trim panel.

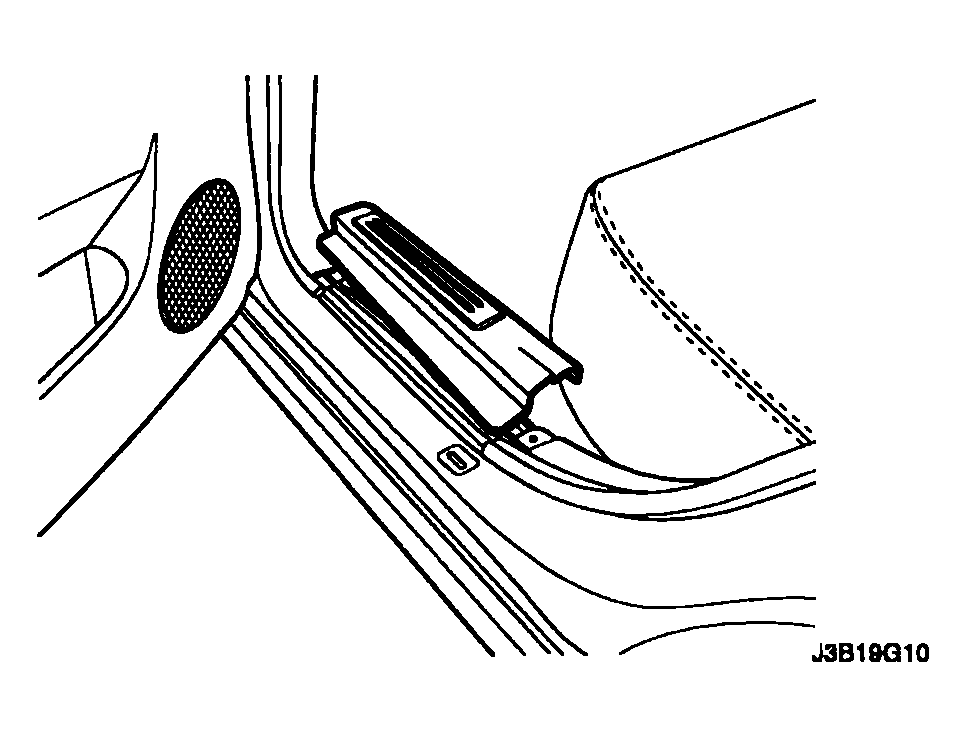

    Fig 1: Removing Rear Rocker Trim Panel
    G04104613Courtesy of SUZUKI OF AMERICA CORP.
