Lower B-Pillar Trim Panel Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower B-pillar trim panel.
  2. Install the front rocker trim panel and the rear rocker trim panel to their original positions.

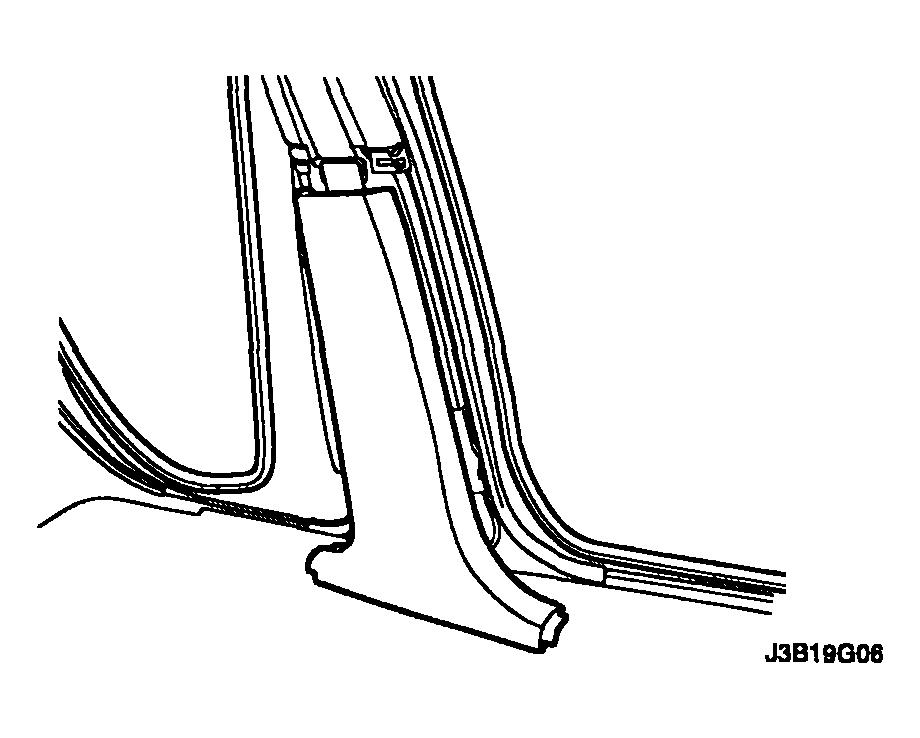

    Fig 1: Installing Lower B-Pillar Trim Panel
    G04104602Courtesy of SUZUKI OF AMERICA CORP.
