Front Door Trim Panel Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Lower the front window.
Remove the window frame inner cover.
Remove the front door escutcheon.

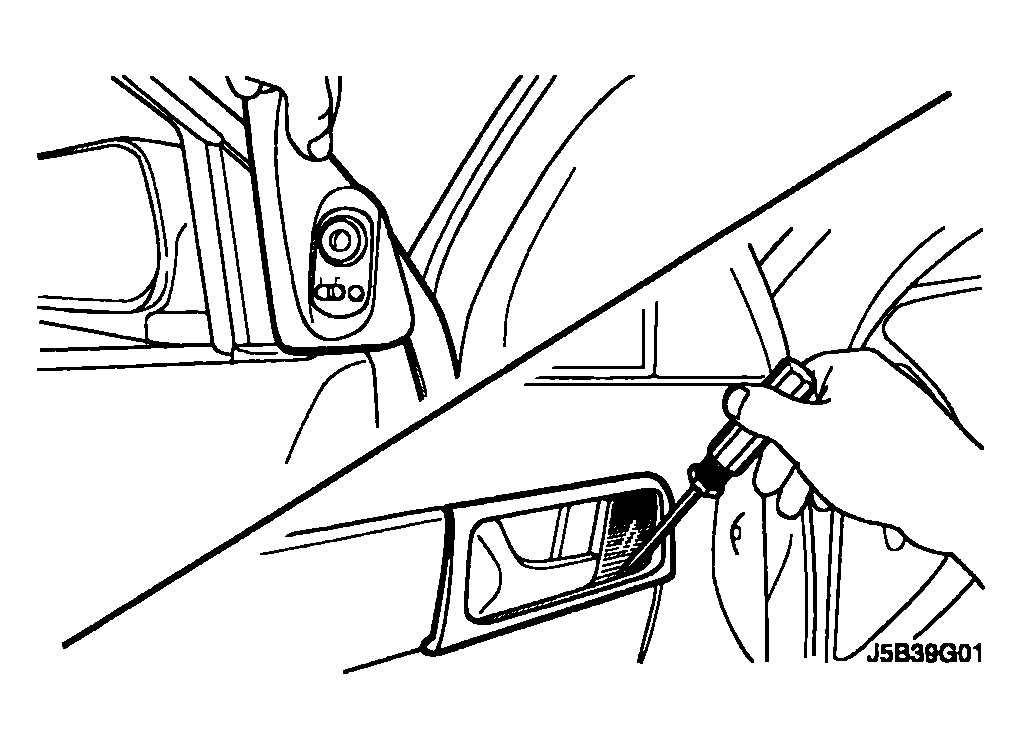

Fig 1: Removing Front Door Escutcheon
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear deck lid remote switch and the power window/mirror control switch.

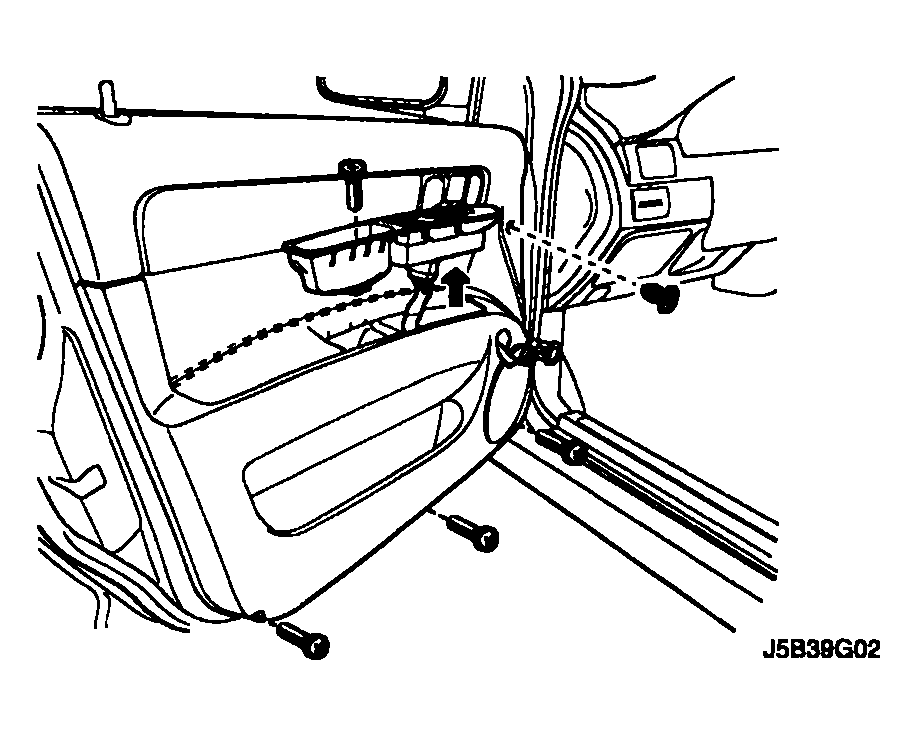

Fig 2: Removing Rear Deck Lid And Power Window/Mirror Control Switch
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the electrical connectors.
Remove the door trim panel screws.
Pry off the trim panel using the trim remover KM-475-B.
Disconnect the status display connector.
