Front Door Trim Panel Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the status display connector.
- Install the trim panel.
- Connect the electrical connectors.

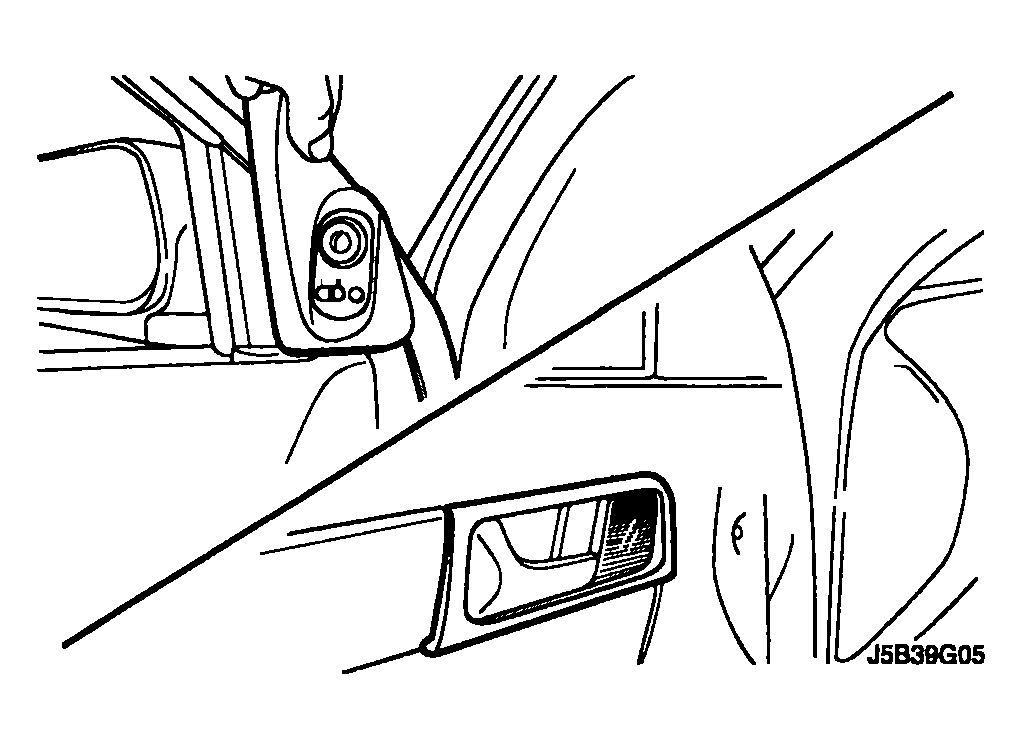

- Install the rear deck lid remote switch and the power window/mirror control switch.
- Install the door trim panel screws.
Tighten
Tighten the door trim panel screws to 2.5 N.m (22 lb-in).
- Install the front door escutcheon.
- Install the window frame inner cover.
- Raise the front window.
