Floor Console Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the screw from the rear portion of the floor console.

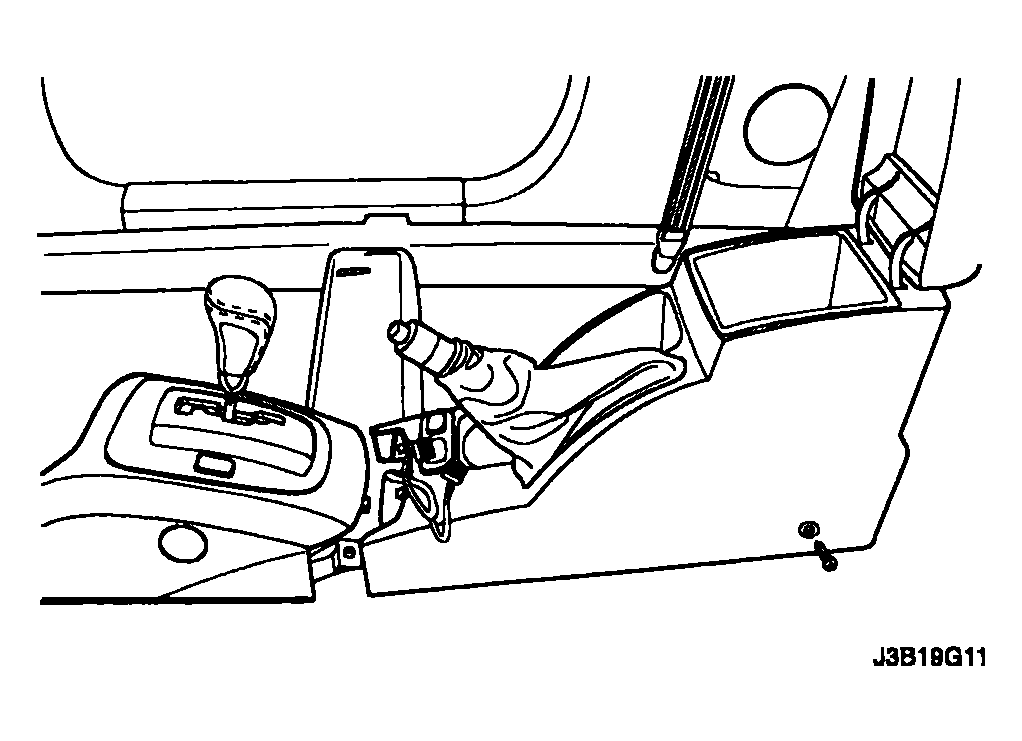

Fig 1: Removing Screw From Rear Portion Of Floor Console
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screws from the front portion of the floor console.
Remove the floor console.
Disconnect the electrical connectors.

Fig 2: Disconnecting Electrical Connectors
Courtesy of SUZUKI OF AMERICA CORP.
