Driver's Side Knee Bolster Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

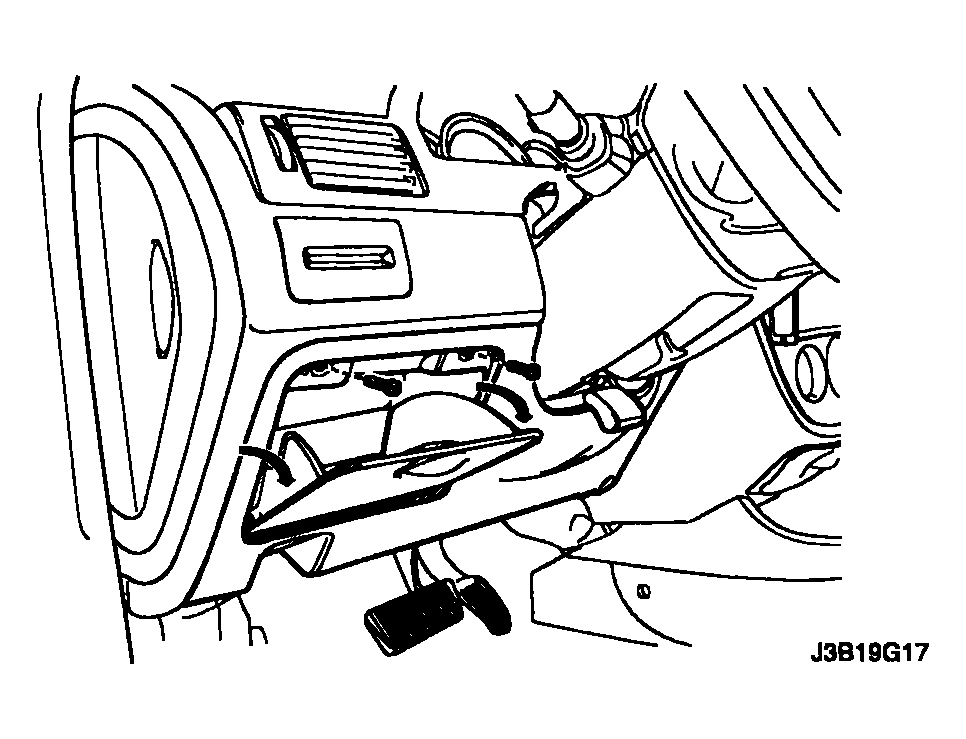

- Install the knee bolster with the bolts.
Tighten
Tighten the driver's side knee bolster mounting bolts to 10 N.m(89 lb-in).
- Install the instrument panel under cover.
- Connect the hood release cable to the hood latch release handle.
- Install the screws.
