Splash Shield Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rotor. Refer to "ROTOR REMOVAL AND INSTALLATION :".
  2. Remove the screws for the splash shield from the steering knuckle.
  3. Remove the splash shield.

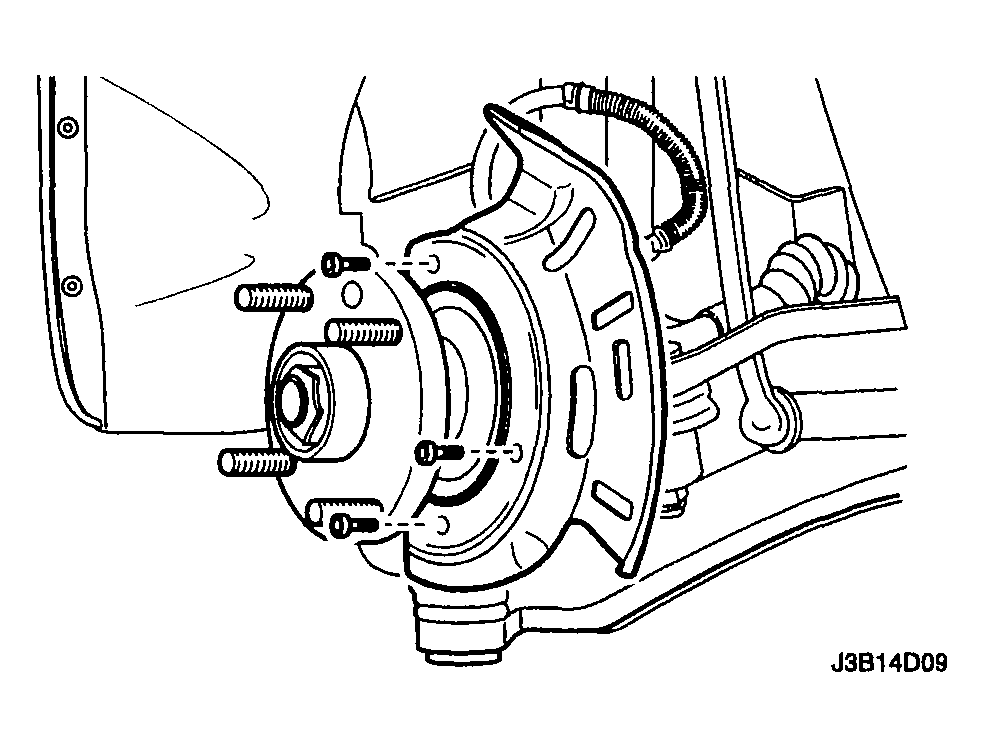

    Fig 1: Removing Splash Shield
    G04103308Courtesy of SUZUKI OF AMERICA CORP.
