Splash Shield Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

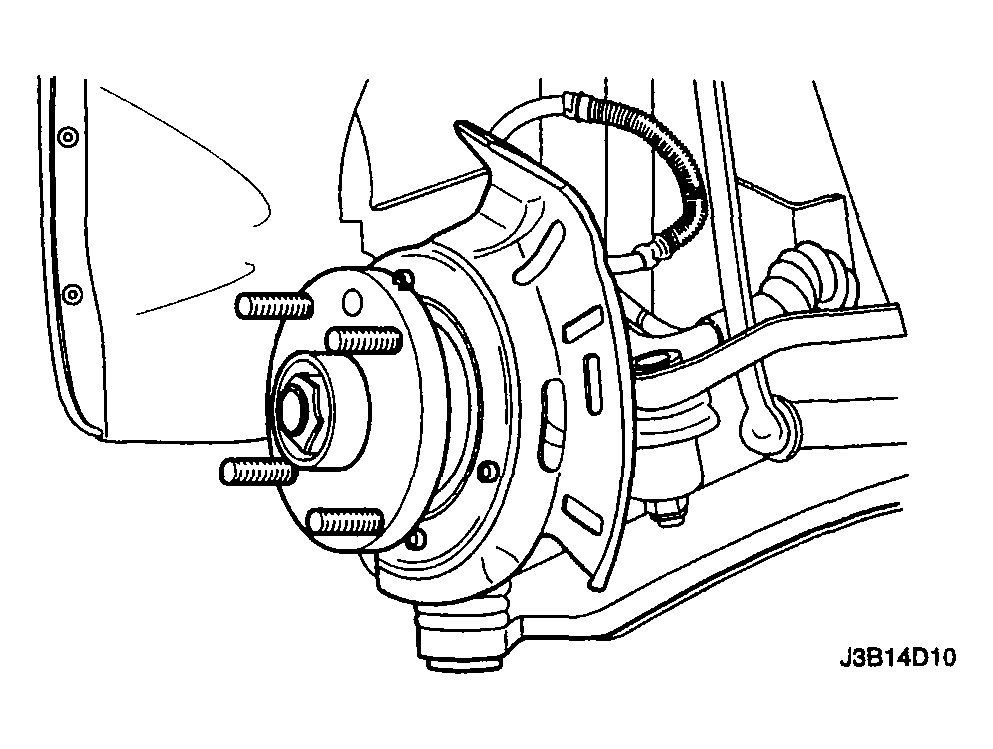

- Install the splash shield.
- Secure the splash shield to the steering knuckle with the screws.
Tighten
Tighten the splash shield-to-steering knuckle screws to 4 N.m (35 lb-in).
- Install the rotor. Refer to "ROTOR REMOVAL AND INSTALLATION :".
