Caliper Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Mark the position of the front wheels relative to the wheel hubs and remove the wheels. Refer to "WHEEL REMOVAL AND INSTALLATION :".
  3. Remove the bolt and the washers attaching the brake hose to the caliper.
  4. Disconnect the brake hose, and plug the openings in the caliper and the brake hose to prevent fluid loss and contamination.
  5. Remove the caliper mounting bolts from the steering knuckle, and remove the caliper assembly.

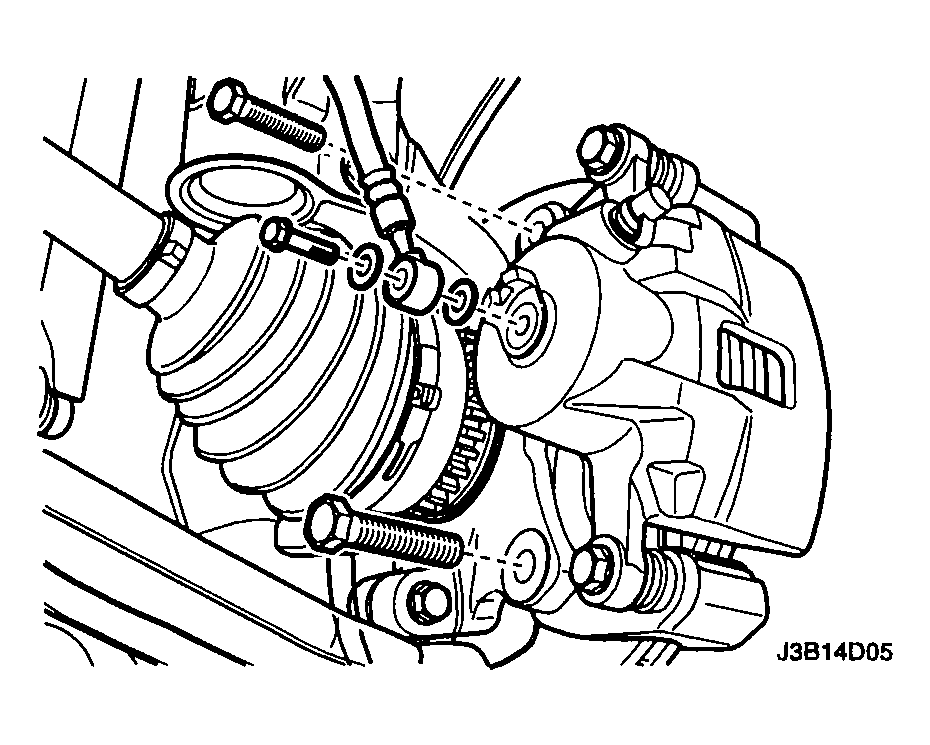

    Fig 1: Removing Caliper Mounting Bolts From Steering Knuckle
    G04103301Courtesy of SUZUKI OF AMERICA CORP.
