Stabilizer Shaft and Insulators Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the stabilizer shaft.
Install the stabilizer shaft insulator clamps, the stabilizer shaft clamp bolt, and the insulators onto the crossmember. Do not tighten the bolt.

Fig 1: Installing Stabilizer Shaft Insulator Clamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the stabilizer link onto the stabilizer shaft and connect them with the stabilizer shaft-to-stabilizer link nut.
Tighten
- Tighten the stabilizer shaft-to-stabilizer link nut to 47 N.m (35 lb-ft).
- Tighten the stabilizer shaft-to-crossmember clamp bolts to 25 N.m (18 lb-ft).
Install the front wheels. Refer to "WHEEL REMOVAL AND INSTALLATION :".

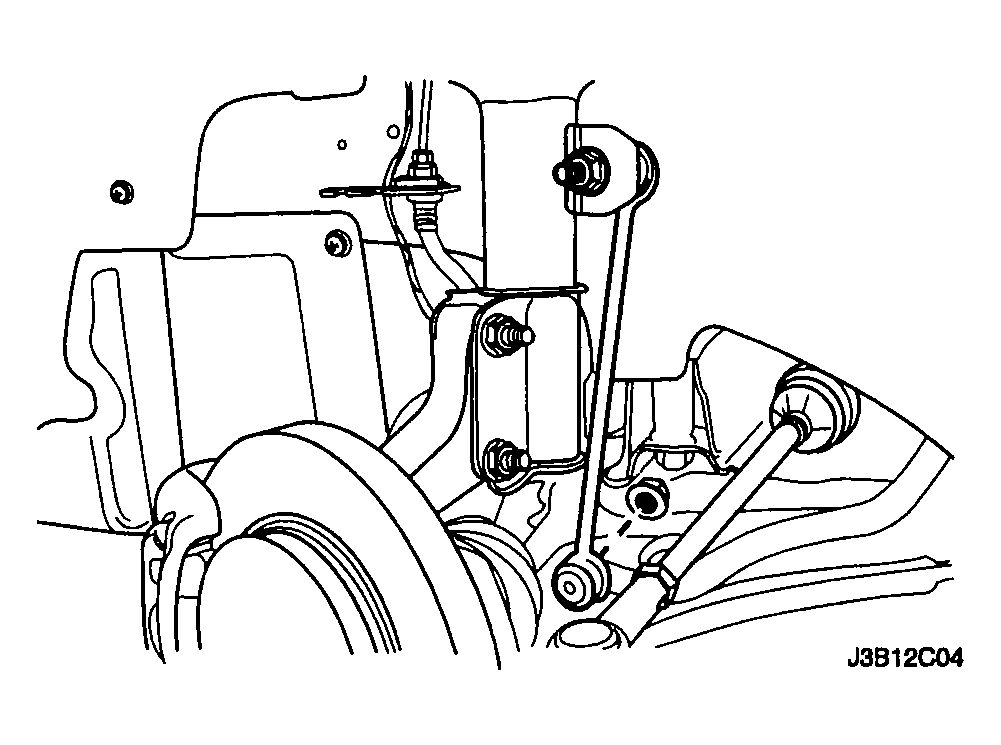

Fig 2: Installing Stabilizer Shaft Link Nut
Courtesy of SUZUKI OF AMERICA CORP.
