Stabilizer Link Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the stabilizer shaft-to-stabilizer link nut.
  2. Remove the stabilizer link-to-strut assembly nut.
  3. Remove the stabilizer link.

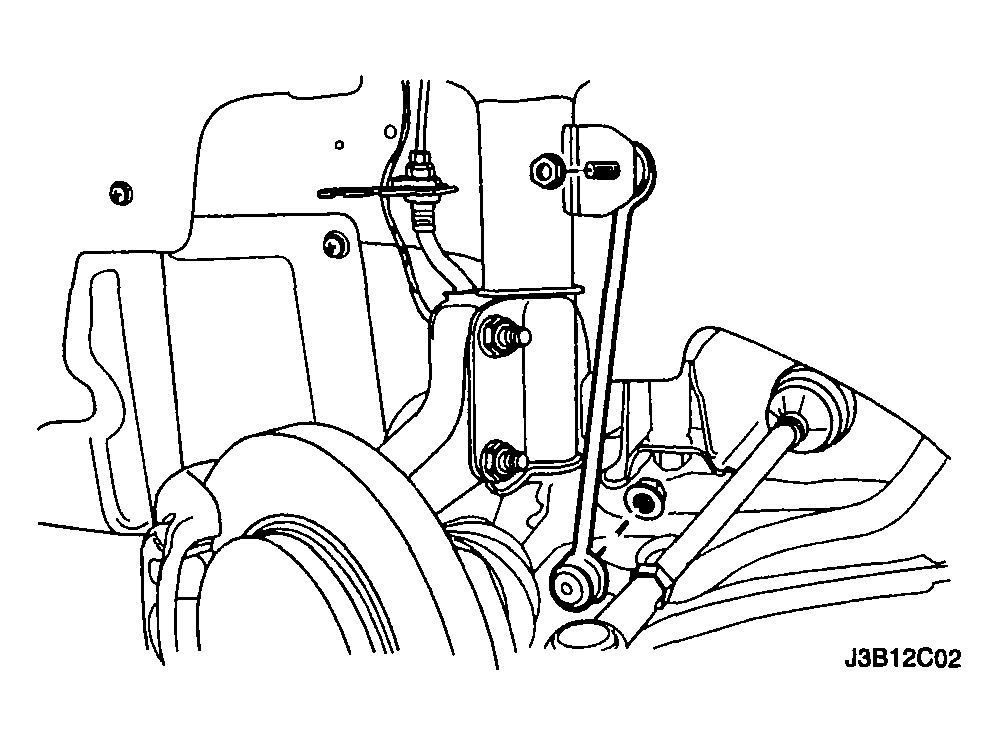

    Fig 1: Removing Stabilizer Link
    G04103060Courtesy of SUZUKI OF AMERICA CORP.
