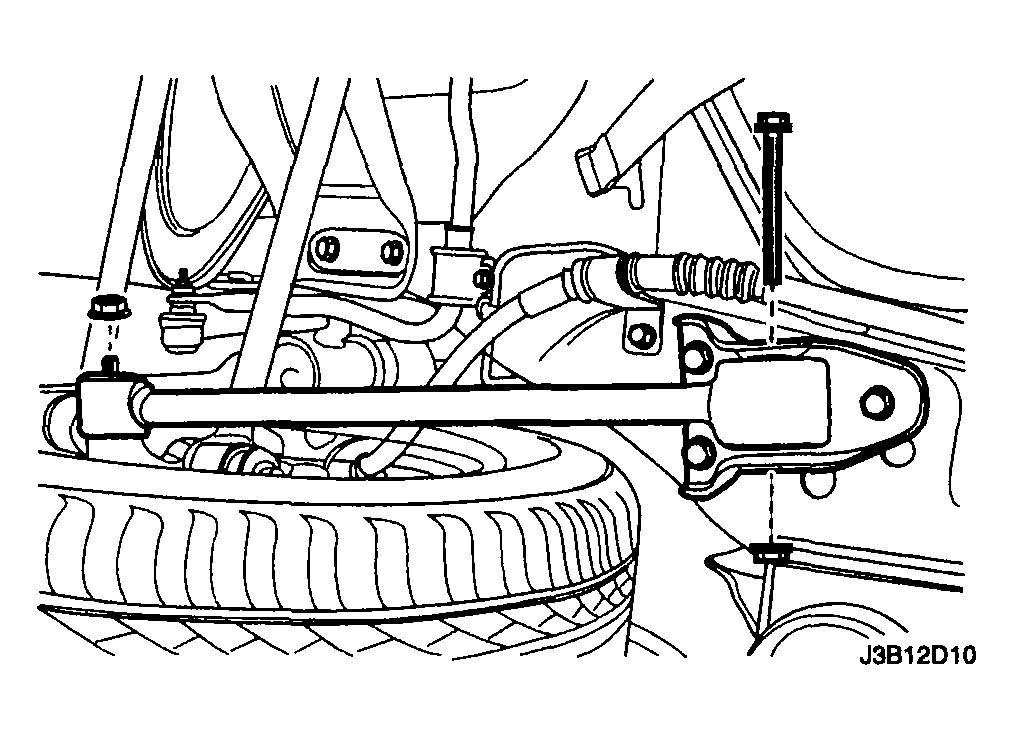

Trailing Link Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and suitably support the vehicle.
- Remove the rear trailing link-to-rear knuckle nut.
- Remove the rear trailing link-to-trailing link bracket nut and the rear trailing link-to-knuckle bolt.
- Remove the rear trailing link.
Courtesy of SUZUKI OF AMERICA CORP.
