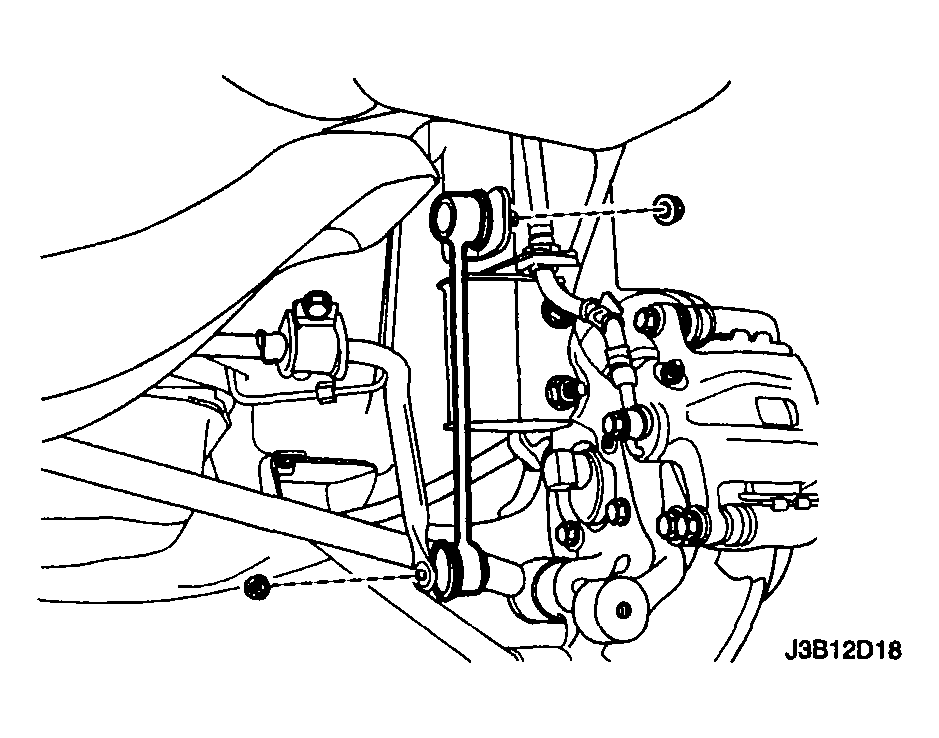

Stabilizer Link Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and suitably support the vehicle.
- Remove the wheel. Refer to "WHEEL REMOVAL AND INSTALLATION :".
- Remove the stabilizer shaft-to-stabilizer link nut.
- Remove the stabilizer link-to-strut assembly nut.
- Remove the stabilizer link.
