Adjustment Procedure

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to "PRELIMINARY INSPECTION :".
Loosen the nuts on the parallel link-to-crossmember bolts.

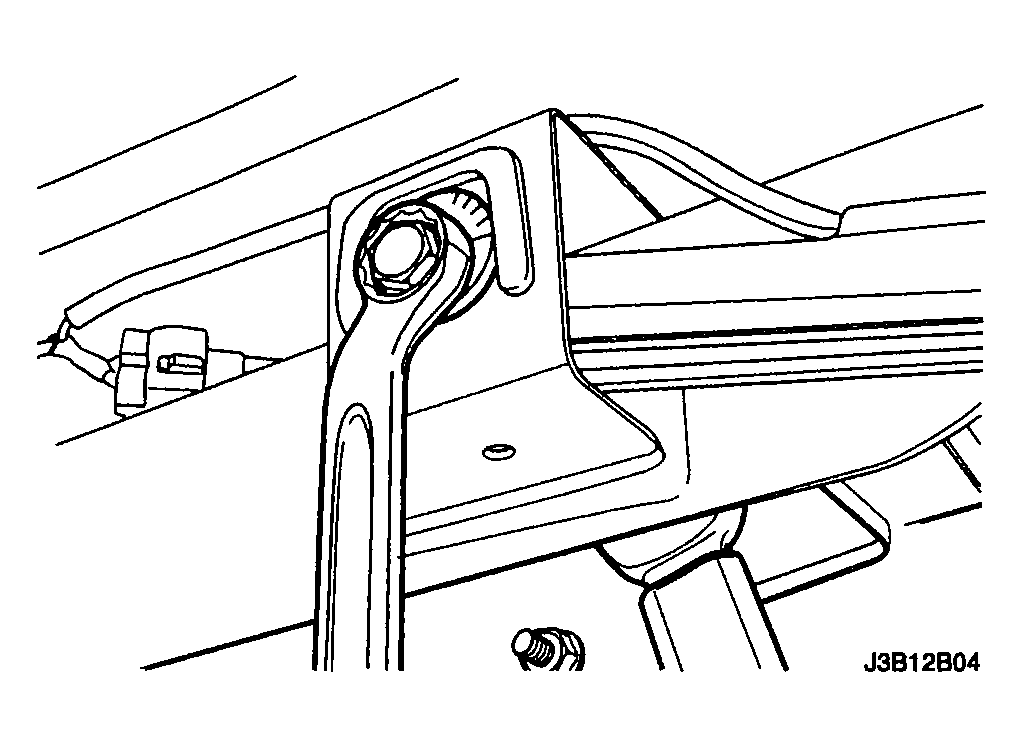

Fig 1: Loosening Nuts On Parallel Link-To-Crossmember Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Rotate the parallel link adjustment bolts until the preferred rear toe specification is obtained. Refer to "WHEEL ALIGNMENT SPECIFICATIONS :" for preferred specifications.

Fig 2: Adjusting Parallel Link Adjustment Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Hold the parallel link adjustment bolts and tighten the parallel link-to-crossmember nuts.
Tighten

Tighten the parallel link-to-crossmember nuts to 90 N.m (66 lb-ft).

Fig 3: Tightening Parallel Link-To-Crossmember Nuts
Courtesy of SUZUKI OF AMERICA CORP.
