Split Rear Seatback Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear seatbacks.
  2. Remove the bolts, and the seatback from the hinges.

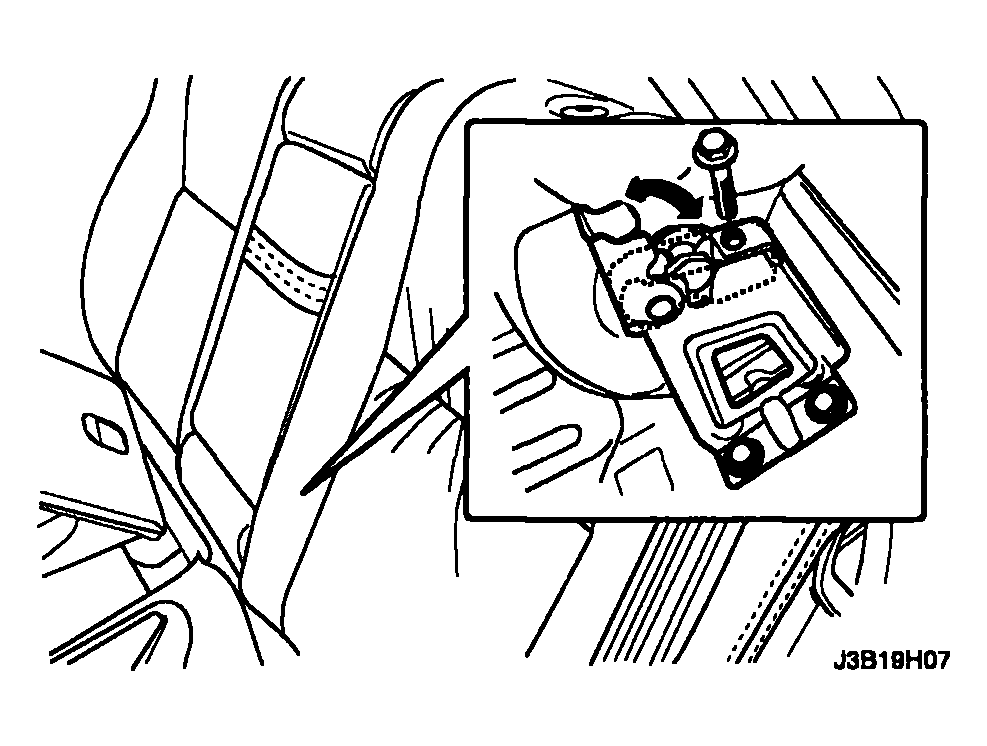

    Fig 1: Removing Bolts, And Seatback From Hinges
    G04104577Courtesy of SUZUKI OF AMERICA CORP.
