Split Rear Seatback Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the seatback to the hinges with the bolts.
Tighten

Tighten the rear seatback bolts to 25 N.m (18 lb-ft).
Raise and secure the rear seatback in the upright position.

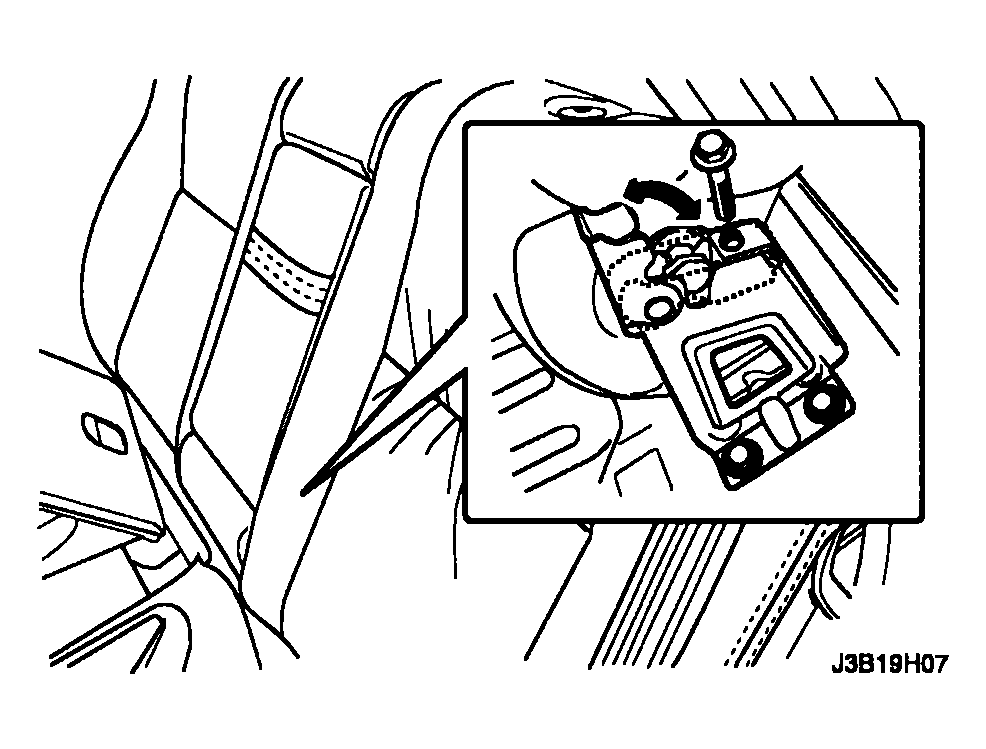

Fig 1: Installing Seatback To Hinges With Bolts
Courtesy of SUZUKI OF AMERICA CORP.
