Seat Covers Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seatback and/or cushion. Refer to "FRONT SEATBACK REMOVAL AND INSTALLATION :", "FRONT SEAT CUSHION REMOVAL AND INSTALLATION :", "SPLIT REAR SEATBACK REMOVAL AND INSTALLATION :" and/or "REAR SEAT CUSHION REMOVAL AND INSTALLATION :".
  2. Remove the hog rings from the seatback and/or the cushion.
  3. Remove the seat cover from the seatback and/or the cushion.

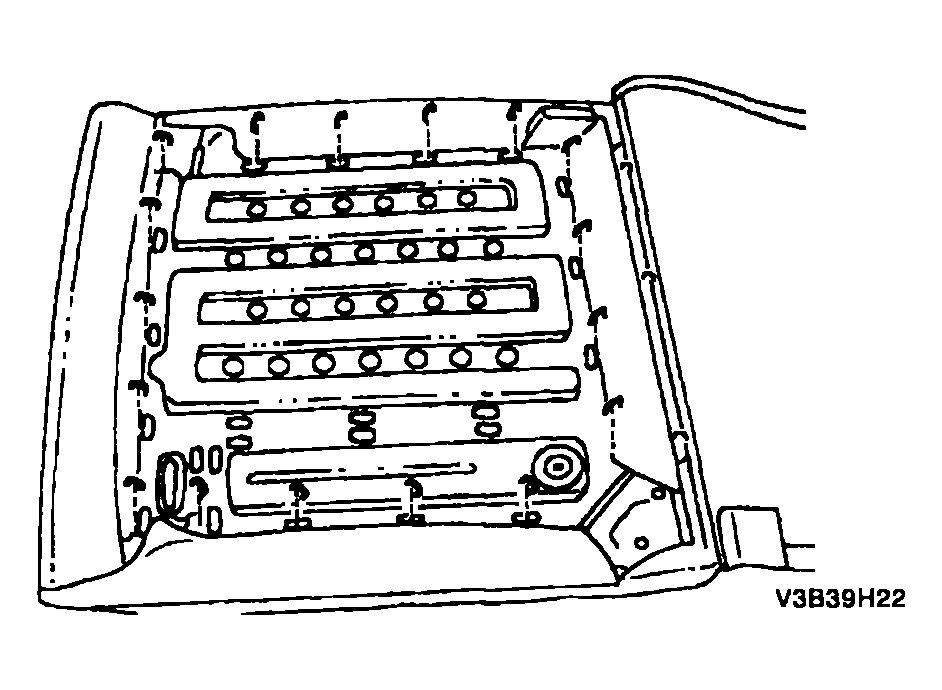

    Fig 1: Removing Hog Rings From Seatback And/Or Cushion
    G04104583Courtesy of SUZUKI OF AMERICA CORP.
