Seat Covers Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cover onto the seatback and/or the cushion with new hog rings.
  2. Install the seatback and/or the seat cushion. Refer to "FRONT SEATBACK REMOVAL AND INSTALLATION :", "FRONT SEAT CUSHION REMOVAL AND INSTALLATION :", "SPLIT REAR SEATBACK REMOVAL AND INSTALLATION :" and/or "REAR SEAT CUSHION REMOVAL AND INSTALLATION :".

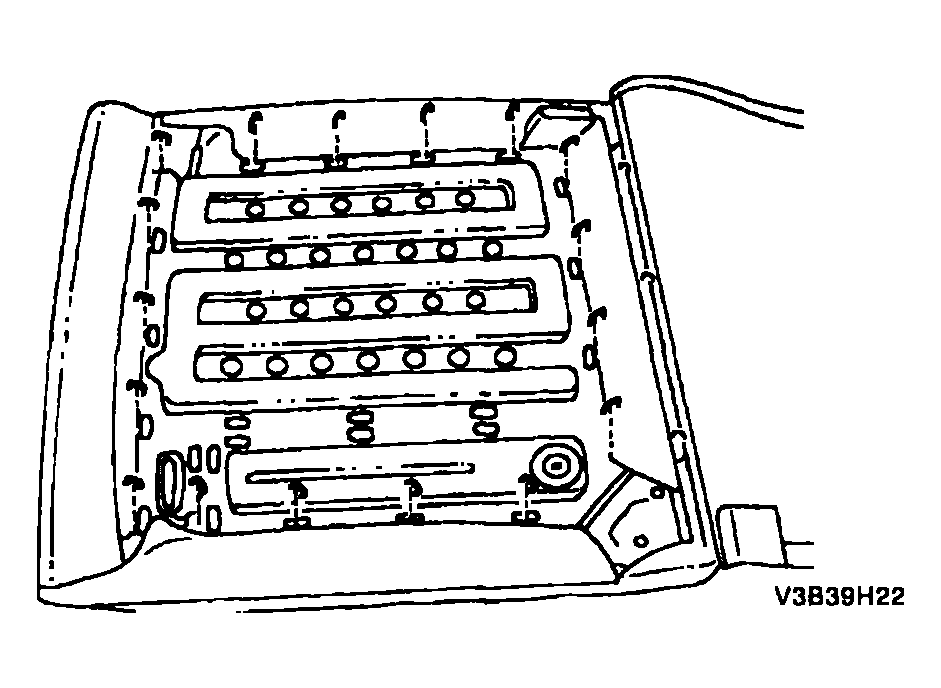

    Fig 1: Installing Seat Cover Onto Seatback And/Or Cushion With Hog Rings
    G04104584Courtesy of SUZUKI OF AMERICA CORP.
