Rear Seat Center Armrest Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

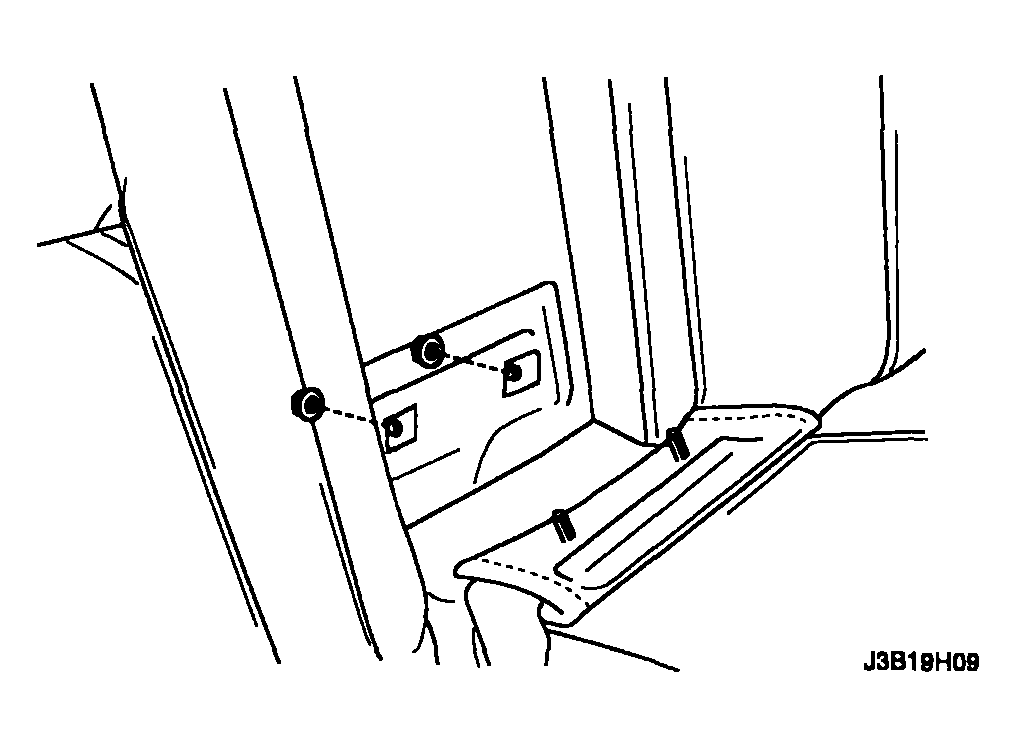

- Install the armrest with the nuts.
Tighten
Tighten the armrest nuts to 24 N.m (18 lb-ft).
- Raise and secure the rear seatback in the upright position.
