Front Seat Cushion Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL AND INSTALLATION :".
  2. Remove the seat trims.
  3. Remove the seat cushion nuts.
  4. Remove the cushion from the seat track.

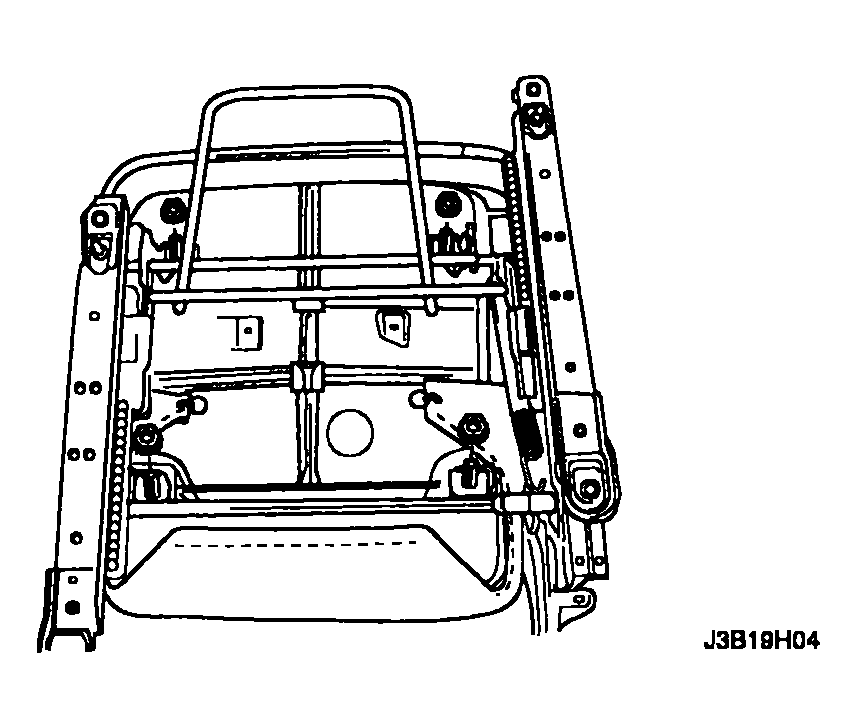

    Fig 1: Removing Seat Cushion Nuts
    G04104564Courtesy of SUZUKI OF AMERICA CORP.
