Front Seat Cushion Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Install the cushion onto the seat track.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the seat cushion with the nuts.
Tighten

Tighten the front seat cushion nuts to 12 N.m (106 lb-in).
Install the seat trims.
Install the front seat in the vehicle. Refer to "FRONT BUCKET SEAT REMOVAL AND INSTALLATION :".

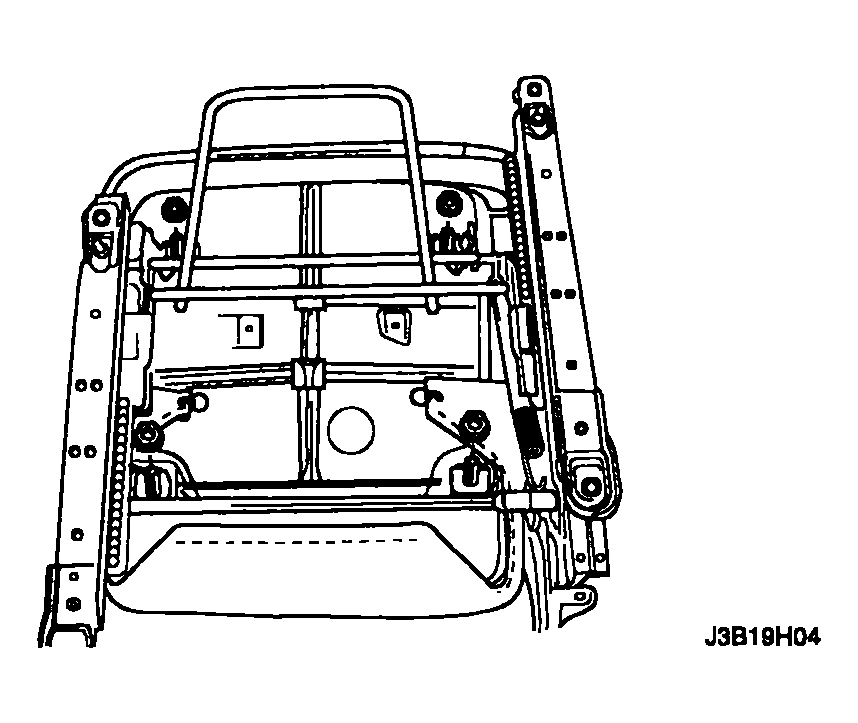

Fig 1: Installing Seat Cushion With Nuts
Courtesy of SUZUKI OF AMERICA CORP.
